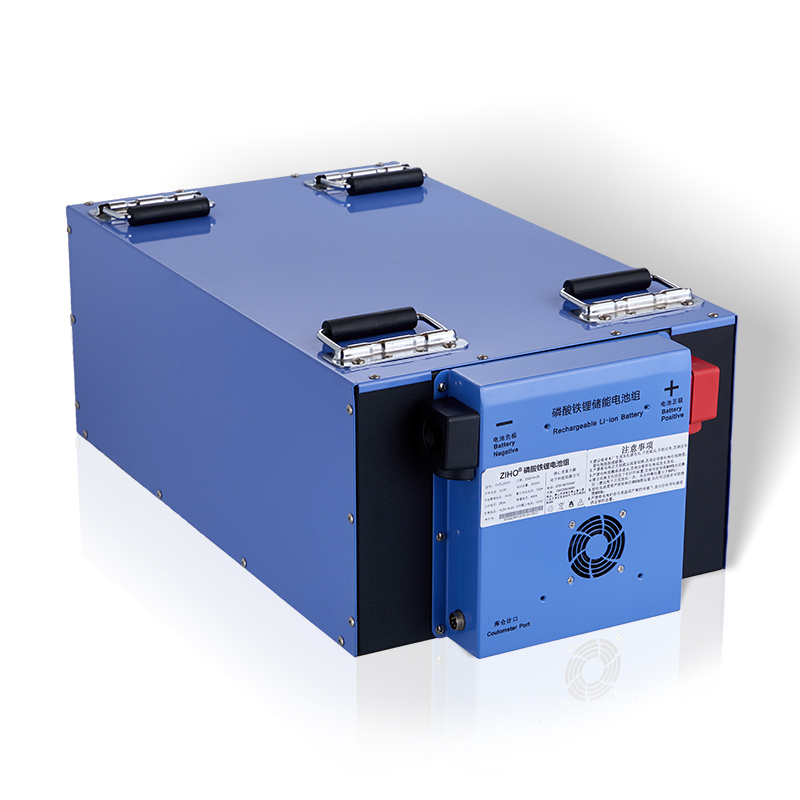

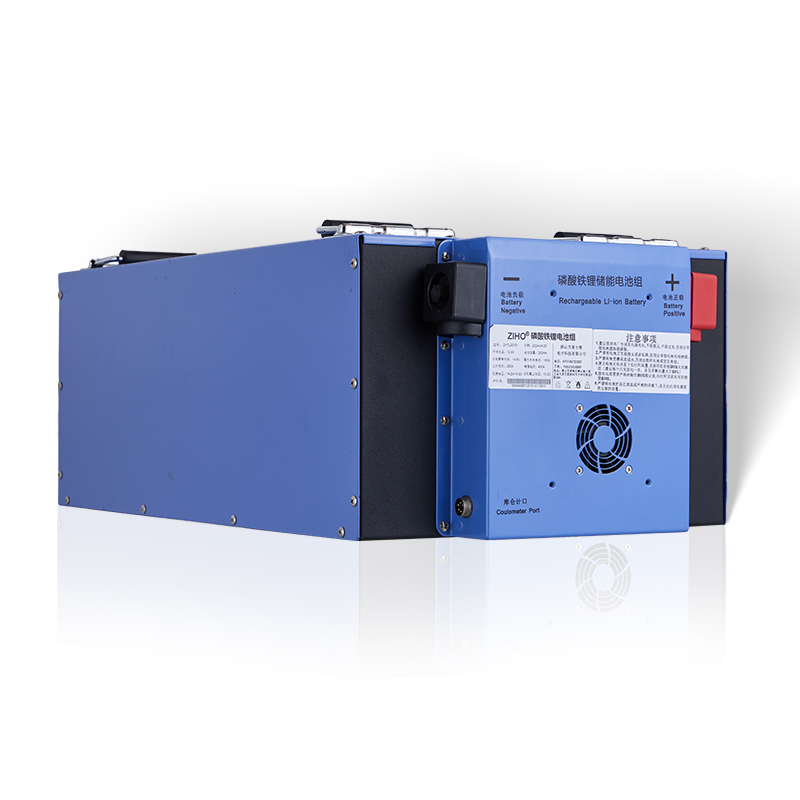

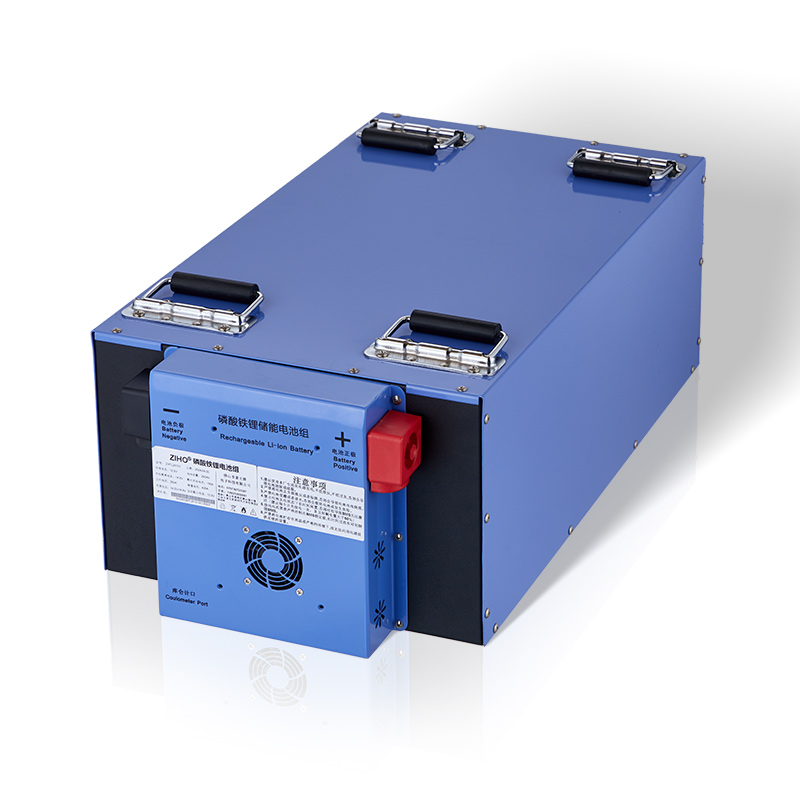

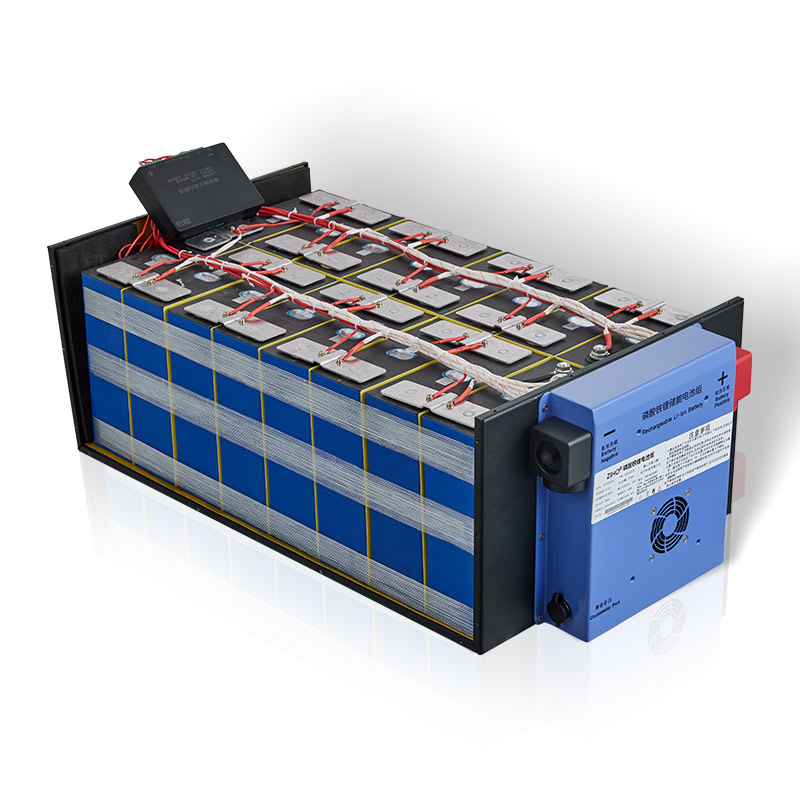

1000AH 1200AH Solar LiFePO4 Battery Pack

ZIHO Inverter is the professional 1000AH 1200AH Solar LiFePO4 Battery Pack manufacturer and supplier in China, known for our excellent service and reasonable prices.

● Brand new lithium iron phosphate large monomer;
● Sufficient capacity;
● High consistency;
● Laser welding process;
● Standard high-precision BMS protection board;
● Standard independent active balancing module;
● Standard angle iron and strap;
● Standard coulomb meter.

Send Inquiry

Product Description

If you are interested in our 1000AH 1200AH Solar LiFePO4 Battery Pack made in China, please contact us. You can wholesale products from our factory. We sincerely hope to become your reliable long-term business partner!

CAPACITY		SPECIFICATIONS (length * width * height)		WEIGHT		OPTIONAL CHARGER
12V 100AH lithium battery		256283255mm		≈14KG		14.6V 30A
12V 200AH lithium battery		256283255mm		≈23KG		14.6V 30A
12V 300AH lithium battery		406308255mm		≈32KG		14.6V 30A
12V 400AH lithium battery		406308255mm		≈43KG		14.6V 30A
12V 500AH lithium battery		406308255mm		≈53KG		14.6V 60A
12V 600AH lithium battery		453376255mm		≈57KG		14.6V 60A
12V 700AH lithium battery		453376255mm		≈72KG		14.6V 60A
12V 800AH lithium battery		562376255mm		≈82KG		14.6V 90A
12V 900AH lithium battery		562376255mm		≈91KG		14.6V 90A
12V 1000AH lithium battery		673376255mm		≈101KG		14.6V 90A
12V 1200AH lithium battery		673376255mm		≈105KG		14.6V 90A
24V 100AH lithium battery		256283255mm		≈23KG		29.2V20A
24V 200AH lithium battery		406308255mm		≈43KG		29.2V20A
24V 300AH lithium battery		453376255mm		≈57KG		29.2V 20A
24V 400AH lithium battery		562376255mm		≈82KG		29.2V 40A
24V 500AH lithium battery		562376255mm		≈101KG		29.2V 40A
24V 600AH lithium battery		673376255mm		≈105KG		29.2V 40A
48V 100AH lithium battery		406308255mm		≈43KG		58.4V 10A
48V 200AH lithium battery		562376255mm		≈82KG		58.4V 20A
48V 300AH lithium battery		673376255mm		≈105KG		58.4V 20A
Due to different batches of battery cells, there may be differences in weight and size, and customized sizes. Please refer to the actual product for accuracy
BATTERY INFORMATION	Parameter	Data	Discharge parameters	Parameter	Data
	Battery brand	ZIHO		Continuous discharge current can reach	≤250A
	Specification and model	ZH-Tlseries		The instantaneous discharge current can reach	500A
	Battery pack nominal capacity	100AH-1200AH		Battery pack discharge voltage range	10V-14.6V/20V-29.2V/ 40V-58.4V
	Battery pack nominal voltage	12V/24V/48V (Customizable for other voltages）		Battery pack discharge cut-off voltage	10V/20V/40v
	Standard voltage of battery pack	12.8V/25.6V/51.2V		Cutoff voltage for single cell battery discharge	2.5V
	Nominal voltage of individual batteries	3.2V	Short circuit protection parameters	Short circuit protection current	≥600A
	Individual combination method of battery pack	45S/85S/16S		Short circuit protection time	<400US
	Internal resistance of a single battery string	≈0.26mΩ		Short circuit protection recovery method	Remove load or activate charging
Charging parameters	The charging current can reach	150A	housiing	Shell material	Thickened shell
	Battery pack charging voltage	14.6V/29.2V/58.4V	work environment	Operation temperature	-20℃~55℃
				Storage temperature	-20℃~65℃
	Standard charging method	Constant current constant voltage
				Relative humidity	65±20%
	Battery charging time	≥5hours(Full auto stop)	system	BMS management system functions	High precision control board
