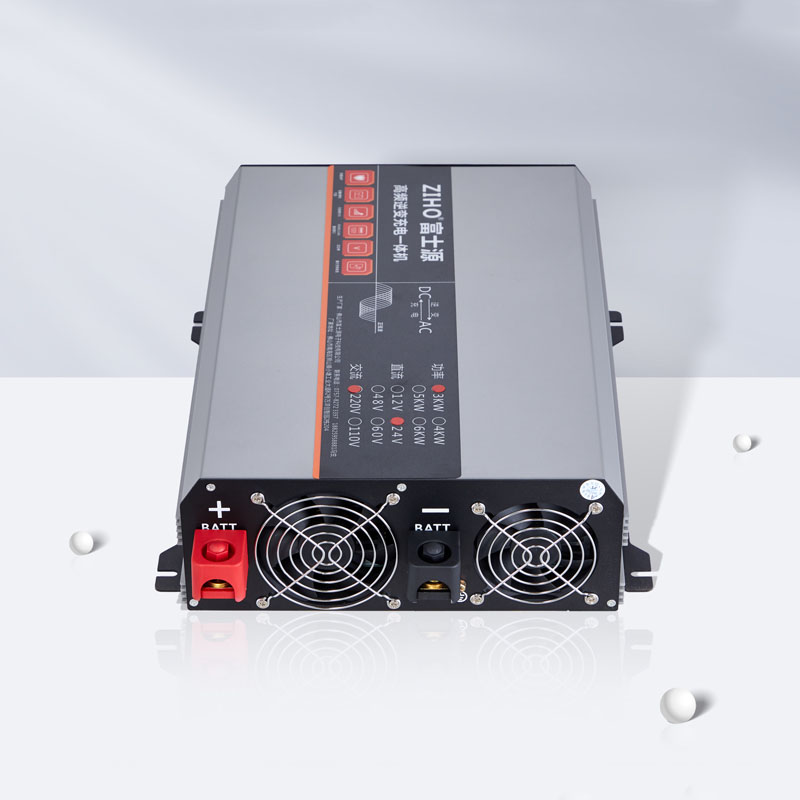

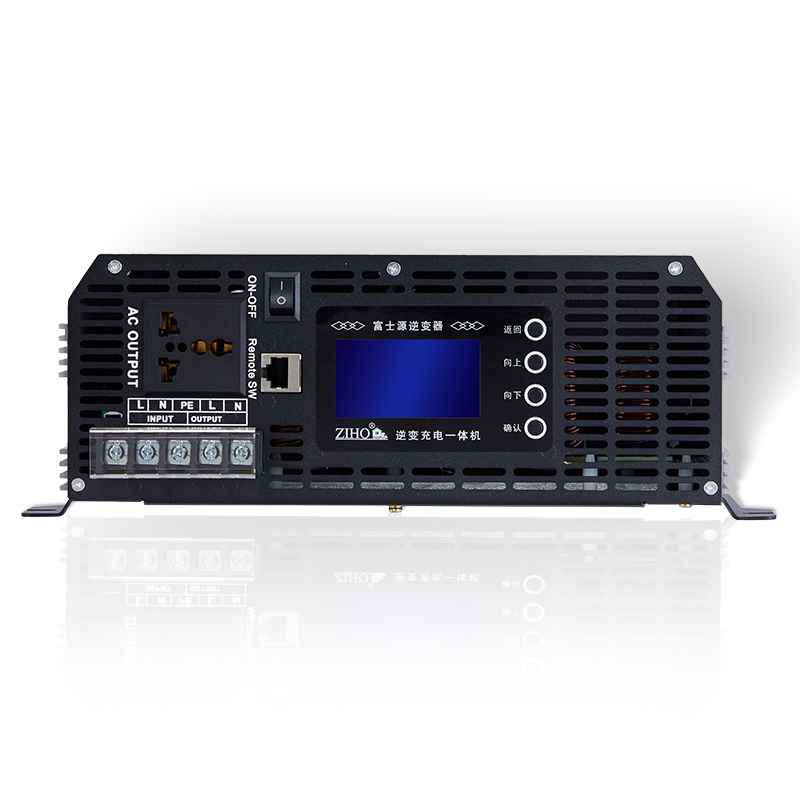

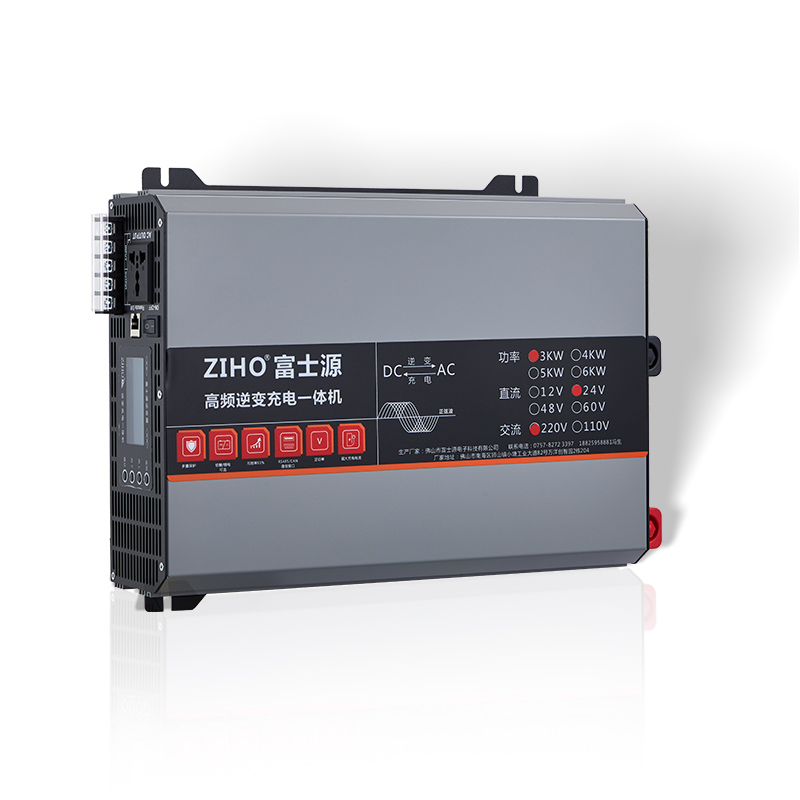

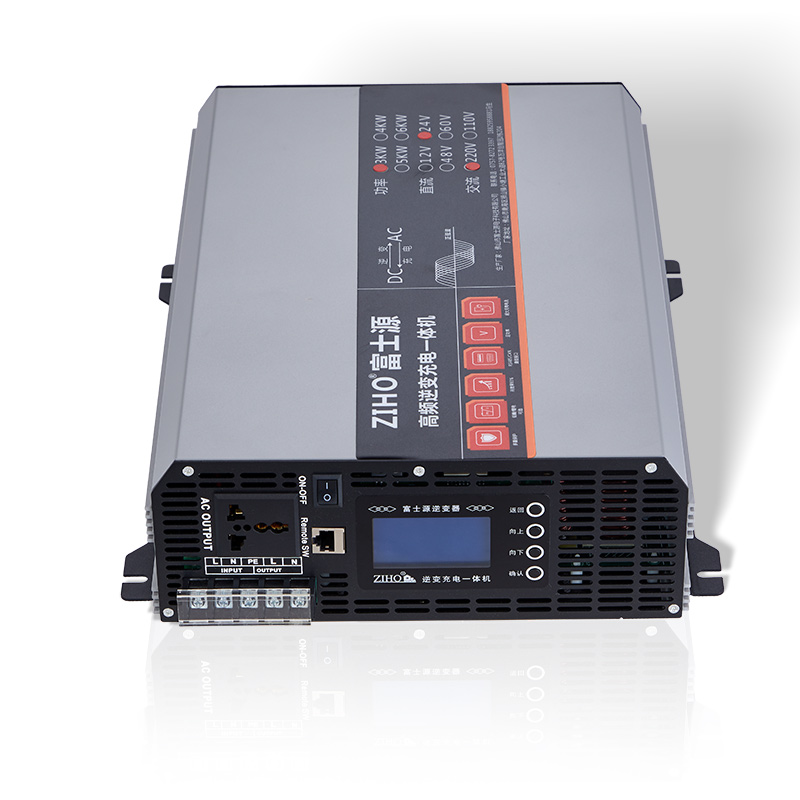

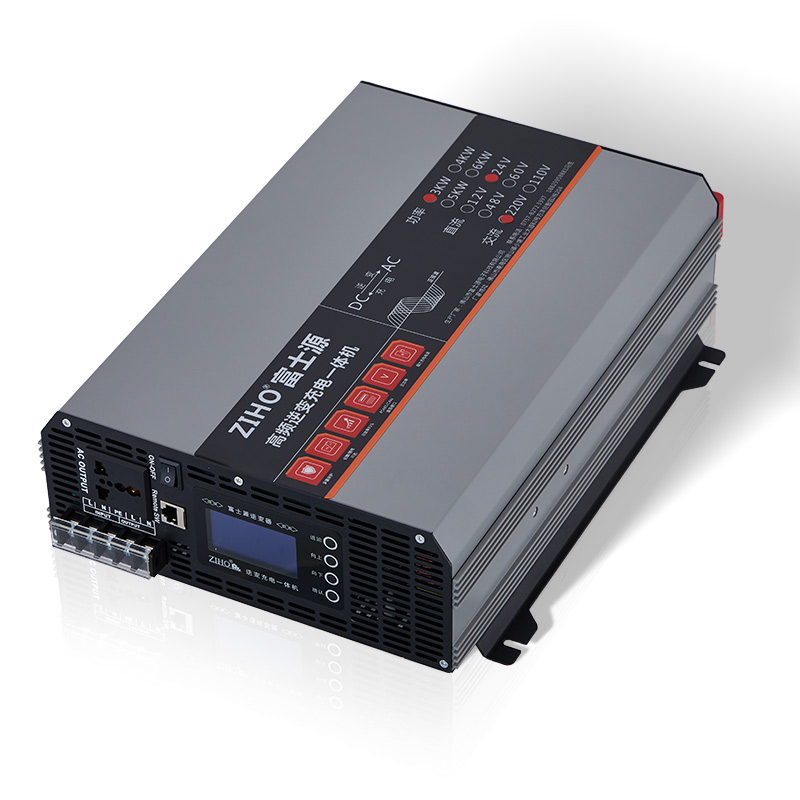

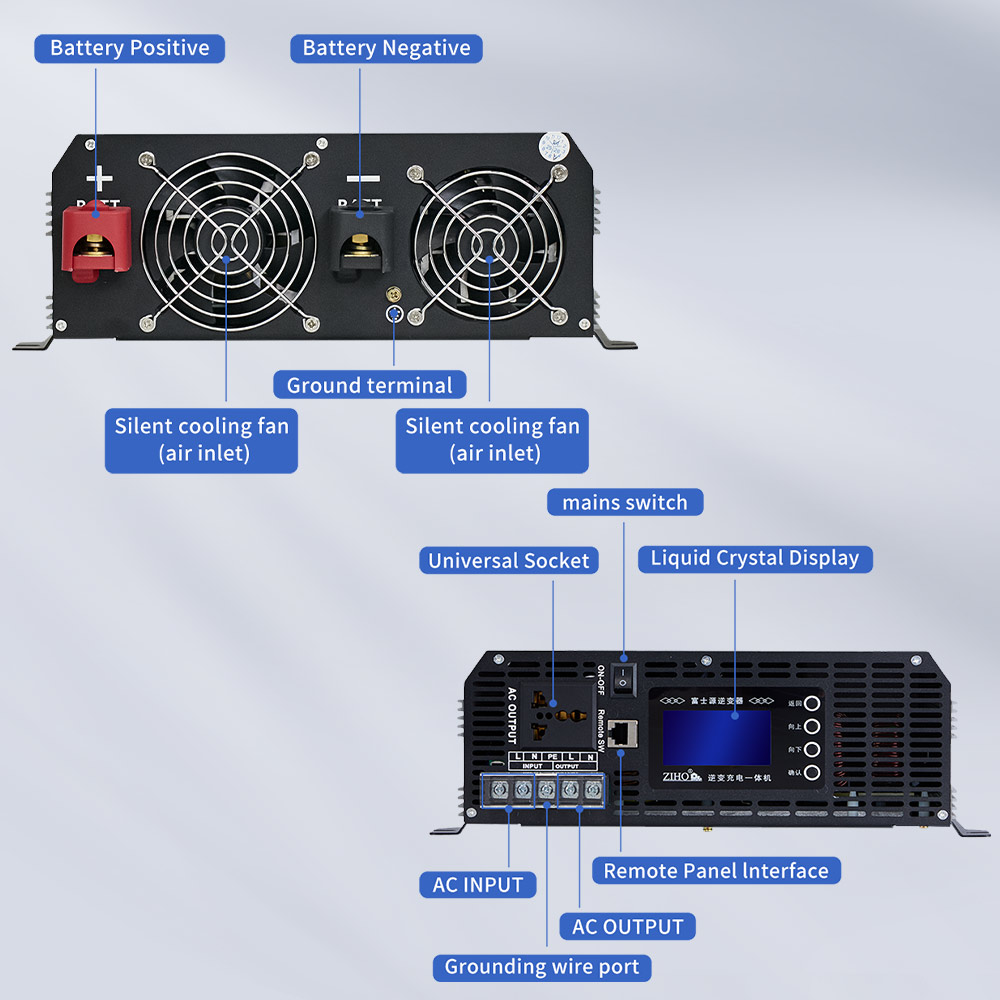

1KW 2KW 3KW High Frequency All In One Inverter Charger

1KW 2KW 3KW High Frequency All In One Inverter Charger Features: Double the rated power in mains mode, support output only and charge only functions, output 210V-240V adjustable, support a variety of batteries, compact, lightweight and easy to carry.

Send Inquiry

Product Description

Machine Model(FSY-PDD)	10201/02/04	20201/02/04/05/06	30201/02/04/05/06
INPUT
Battery Voltage	12V/24V/48V	12V/24V/48V/60V/72V	12V/24V/48V/60V/72V
Mains Voltage	110V/220V
Mains Power Range	154-264VAC/185-264VAC
Frequency	50/60Hz
OUTPUT
Power	1000W	2000W	3000W
Voltage	220V±5%
Frequency	50/60Hz
Self-depletion	10W	15W	20W
Energy-saving idle consumption	3W	3W	3W
Waveform	Pure Sine Wave
Transmission Time (AC to DC)	＜8ms
Transmission Time (DC to AC)	＜8ms
Output Voltage Regulation	210V-240V
Bypass Mode	yes
Energy Saving Mode	yes
Efficiency	≥85%
PROTECTION
Input Protection	Overcurrent Protection
Output Protection	CPU Protection
BATTERIES (need to be purchased separately)
Battery Type	Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom)
Charging Method	Three-stage float charge/constant current and constant voltage
Mains Charging Voltage	12V-three stage float charging:conventional 14.2V、float charging 13.8V、constant current and constant voltage:14.5V 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V：29V 48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage：58V 60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage：72.5V 72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage：87V
Mains Charging Current	0-30A(12V) 0-15A(24V) 0-7A(48V)	0-50A(12V) 0-40A(24V) 0-15A(48V) 0-10A(60V) 0-10A(72V)	0-75A(12V) 0-40A(24V) 0-25A(48V) 0-12A(60V) 0-12A(72V)
Load Capacity
Resistive Load	Below 1KW	Below 2KW	Below 3KW
	Includes the following 12V 3000W Below 2500W 24V 6000W Below 5000W
Inductive Load	Below350W	Below750W	Below 1100W
Alarm
Low Battery Alarm	Audible Alarm - 5 seconds beep
Overload Alarm	Audible Alarm - Continuous beep
Fault Alarm	Audible Alarm - Continuous beep
Environment
Temperature	0-40℃
Humidity	0-90% (non-condensing)
Noise	＜60dB
Size
Dimensions(Lengthwidthheight cm)	Inverter 492219
Packaging(lengthwidthheight cm)	inverter 532626
Inverter Weight KG	11	17	20
