48V4KW-8KW Power Frequency Sine Wave Inverter

Machine Model(FSY-Smart-B)40202/04/05/0650202/04/05/0660202/04/05/0670204/05/0680204/05/06INPUTBattery Voltage24V/48V/60V/72V24V/48V/60V/72V24V/48V/60V/72V48V/60V/72V48V/60V/72VMains Voltage110V/220VMains Power Range154-264VAC/185-264VACFrequency50/60HzOUTPUTPower4000W5000W6000W7000W8000WVoltage220V......

Send Inquiry

Product Description

Machine Model(FSY-Smart-B)	40202/04/05/06	50202/04/05/06	60202/04/05/06	70204/05/06	80204/05/06
INPUT
Battery Voltage	24V/48V/60V/72V	24V/48V/60V/72V	24V/48V/60V/72V	48V/60V/72V	48V/60V/72V
Mains Voltage	110V/220V
Mains Power Range	154-264VAC/185-264VAC
Frequency	50/60Hz
OUTPUT
Power	4000W	5000W	6000W	7000W	8000W
Voltage	220V±5%
Frequency	50/60Hz
Self-depletion	18W	18W	20W	22W	23W
Energy-saving idle consumption	3W	3W	3W	3W	3W
Waveform	Pure Sine Wave
Transmission Time (AC to DC)	＜8ms
Transmission Time (DC to AC)	＜8ms
Output Voltage Regulation	210V-240V
Bypass Mode	yes
Energy Saving Mode	yes
Efficiency	≥85%
PROTECTION
Input Protection	Circuit Breaker
Output Protection	CPU Protection
BATTERIES (need to be purchased separately)
Battery Type	Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom)
Charging Method	Three-stage float charge/constant current and constant voltage
Mains Charging Voltage	12V-three stage float charging:conventional 14.2V、float charging 13.8V、constant current and constant voltage:14.5V 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V：29V 48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage：58V 60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage：72.5V 72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage：87V
Mains Charging Current	0-60A(24V) 0-30A(48V) 0-15A(60V) 0-15A(72V)	0-60A(24V) 0-35A(48V) 0-18A(60V) 0-18A(72V)	0-80A(24V) 0-40A(48V) 0-23A(60V) 0-23A(72V)	0-50A(48V) 0-26A(60V) 0-26A(72V)	0-50A(48V) 0-30A(60V) 0-30A(72V)
Load Capacity
Resistive Load	Below 4KW	Below 5KW	Below 6KW	Below 7KW	Below 8KW
Resistive Load	Includes the following 12V 3000W Below 2500W 24V 6000W Below5000W
Inductive Load	Below 1500W	Below 2000W	Below 2200W	Below 2500W	Below 3000W
Alarm
Low Battery Alarm	Audible Alarm - 5 seconds beep
Overload Alarm	Audible Alarm - Continuous beep
Fault Alarm	Audible Alarm - Continuous beep
Environment
Temperature	0-40℃
Humidity	0-90% (non-condensing)
Noise	＜60dB
Size

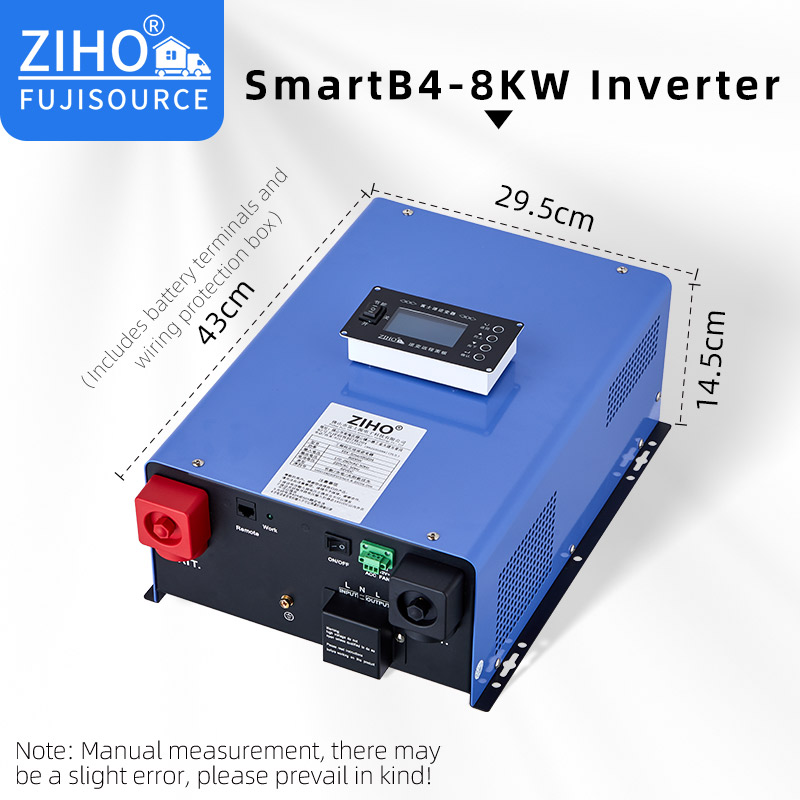

Dimensions(Lengthwidthheight cm)	48V4-8W/inverter 4329.514.5
Packaging(lengthwidthheight cm)	48V4-8W/ inverter 493322
Inverter Weight KG	24	26	28	30	32
