Home > Products > Lithium Iron Phosphate Battery Pack > PV Energy Storage LiFePO4 Battery Pack > 600AH PV Energy Storage LiFePO4 Battery Pack

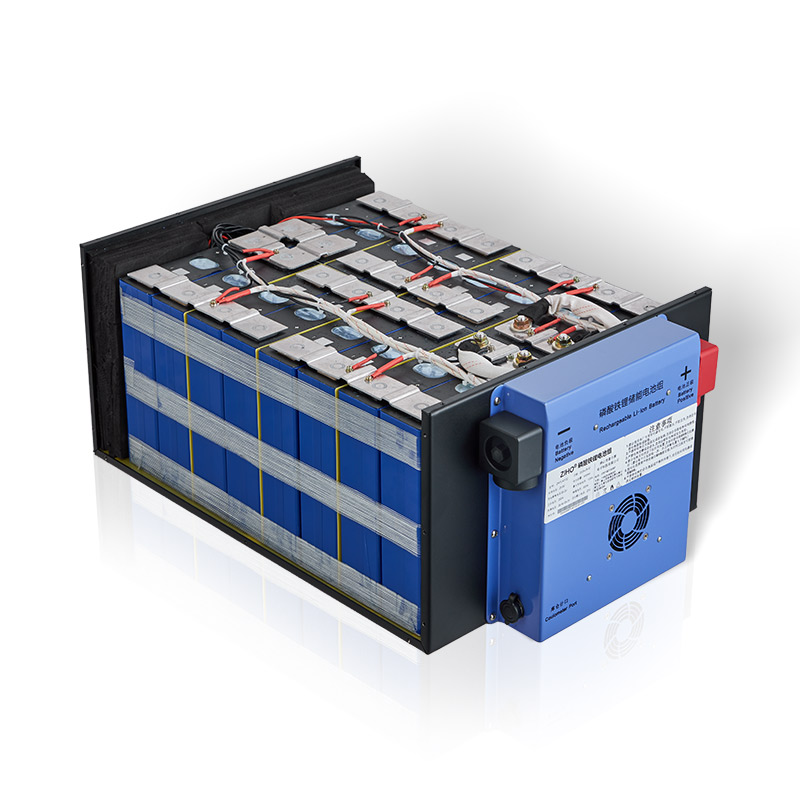

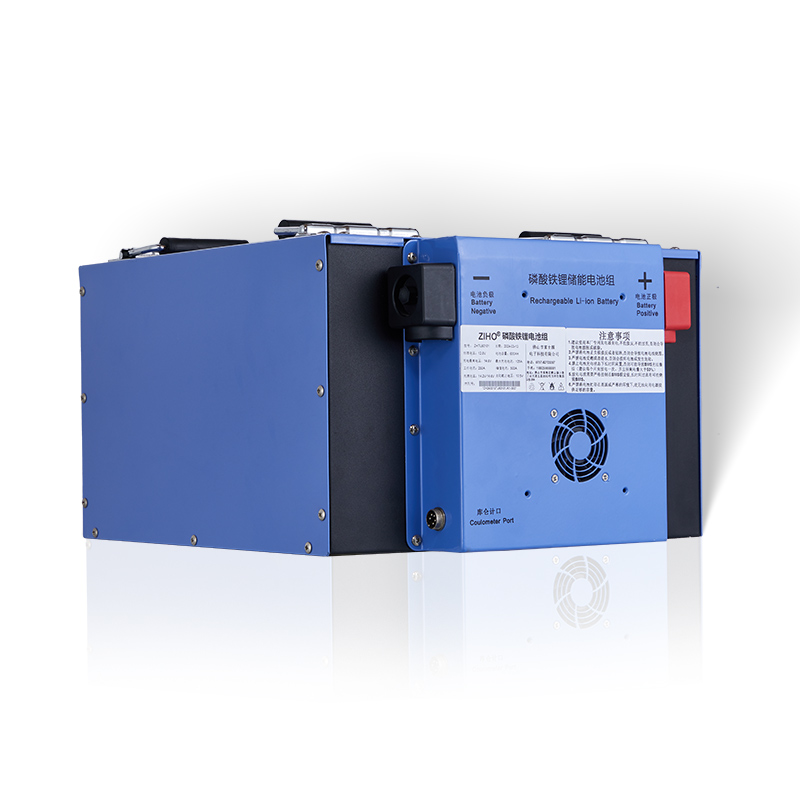

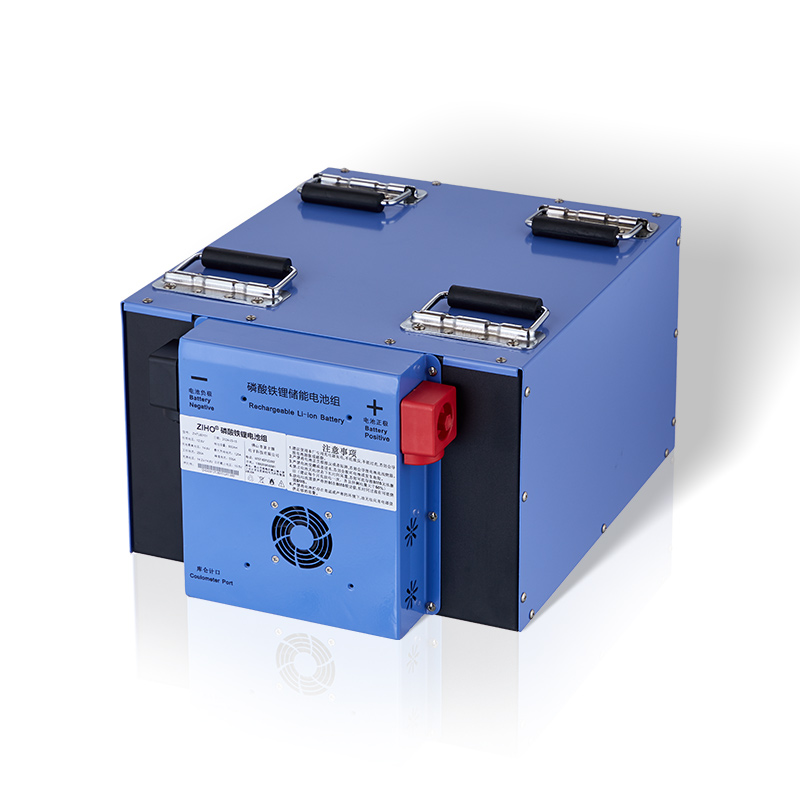

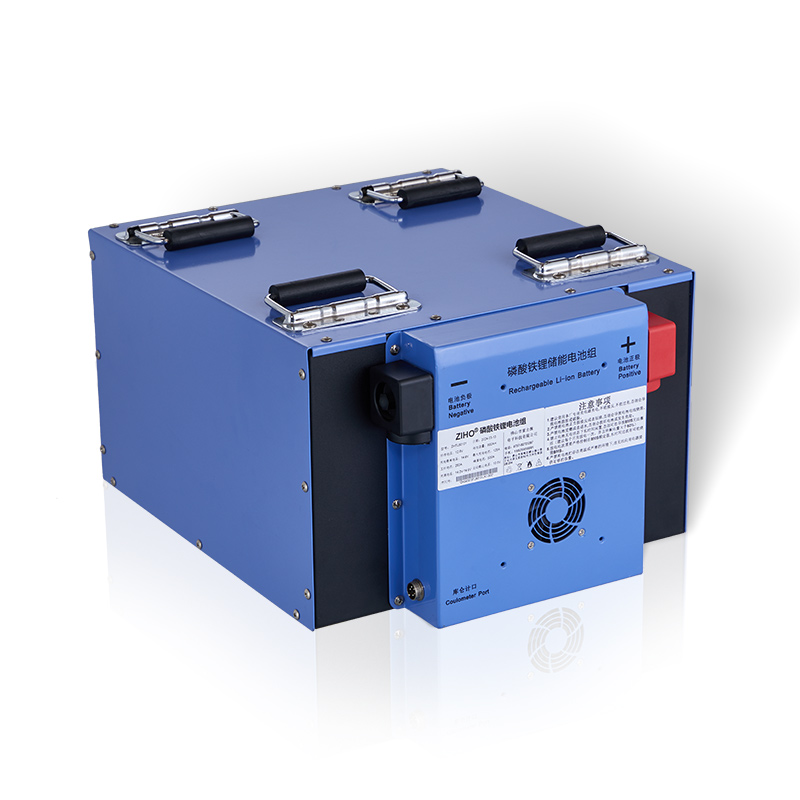

600AH PV Energy Storage LiFePO4 Battery Pack
● Brand new lithium iron phosphate large monomer;
● Sufficient capacity;
● High consistency;
● Laser welding process;
● Standard high-precision BMS protection board;
● Standard independent active balancing module;
● Standard angle iron and strap;
● Directly replace lead-acid in size.
Send Inquiry
Product Description
| CAPACITY | SPECIFICATIONS (length * width * height) | WEIGHT | OPTIONAL CHARGER | |||
| 12V 100AH lithium battery | 256*283*255mm | ≈14KG | 14.6V 30A | |||
| 12V 200AH lithium battery | 256*283*255mm | ≈23KG | 14.6V 30A | |||
| 12V 300AH lithium battery | 406*308*255mm | ≈32KG | 14.6V 30A | |||
| 12V 400AH lithium battery | 406*308*255mm | ≈43KG | 14.6V 30A | |||
| 12V 500AH lithium battery | 406*308*255mm | ≈53KG | 14.6V 60A | |||
| 12V 600AH lithium battery | 453*376*255mm | ≈57KG | 14.6V 60A | |||
| 12V 700AH lithium battery | 453*376*255mm | ≈72KG | 14.6V 60A | |||
| 12V 800AH lithium battery | 562*376*255mm | ≈82KG | 14.6V 90A | |||
| 12V 900AH lithium battery | 562*376*255mm | ≈91KG | 14.6V 90A | |||
| 12V 1000AH lithium battery | 673*376*255mm | ≈101KG | 14.6V 90A | |||
| 12V 1200AH lithium battery | 673*376*255mm | ≈105KG | 14.6V 90A | |||
| 24V 100AH lithium battery | 256*283*255mm | ≈23KG | 29.2V20A | |||
| 24V 200AH lithium battery | 406*308*255mm | ≈43KG | 29.2V20A | |||
| 24V 300AH lithium battery | 453*376*255mm | ≈57KG | 29.2V 20A | |||
| 24V 400AH lithium battery | 562*376*255mm | ≈82KG | 29.2V 40A | |||
| 24V 500AH lithium battery | 562*376*255mm | ≈101KG | 29.2V 40A | |||
| 24V 600AH lithium battery | 673*376*255mm | ≈105KG | 29.2V 40A | |||
| 48V 100AH lithium battery | 406*308*255mm | ≈43KG | 58.4V 10A | |||
| 48V 200AH lithium battery | 562*376*255mm | ≈82KG | 58.4V 20A | |||
| 48V 300AH lithium battery | 673*376*255mm | ≈105KG | 58.4V 20A | |||
| Due to different batches of battery cells, there may be differences in weight and size, and customized sizes. Please refer to the actual product for accuracy | ||||||
| BATTERY INFORMATION | Parameter | Data | Discharge parameters | Parameter | Data | |
| Battery brand | ZIHO | Continuous discharge current can reach | ≤250A | |||
| Specification and model | ZH-Tlseries | The instantaneous discharge current can reach | 500A | |||
| Battery pack nominal capacity | 100AH-1200AH | Battery pack discharge voltage range | 10V-14.6V/20V-29.2V/ 40V-58.4V | |||
| Battery pack nominal voltage | 12V/24V/48V (Customizable for other voltages） | Battery pack discharge cut-off voltage | 10V/20V/40v | |||
| Standard voltage of battery pack | 12.8V/25.6V/51.2V | Cutoff voltage for single cell battery discharge | 2.5V | |||
| Nominal voltage of individual batteries | 3.2V | Short circuit protection parameters | Short circuit protection current | ≥600A | ||
| Individual combination method of battery pack | 45S/85S/16S | Short circuit protection time | <400US | |||
| Internal resistance of a single battery string | ≈0.26mΩ | Short circuit protection recovery method | Remove load or activate charging | |||
| Charging parameters | The charging current can reach | 150A | housiing | Shell material | Thickened shell | |
| Battery pack charging voltage | 14.6V/29.2V/58.4V | work environment | Operation temperature | -20℃~55℃ | ||
| Storage temperature | -20℃~65℃ | |||||
| Standard charging method | Constant current constant voltage | |||||
| Relative humidity | 65±20% | |||||
| Battery charging time | ≥5hours(Full auto stop) | system | BMS management system functions | High precision control board | ||
Applications
Energy storage, DC power, solar power generation, home use, car use, outdoor use
