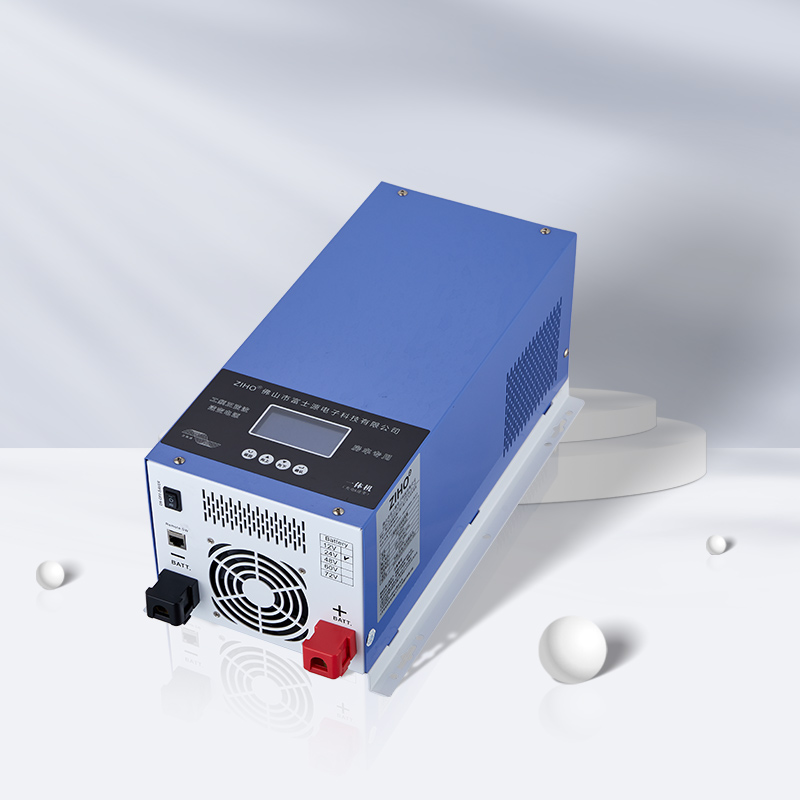

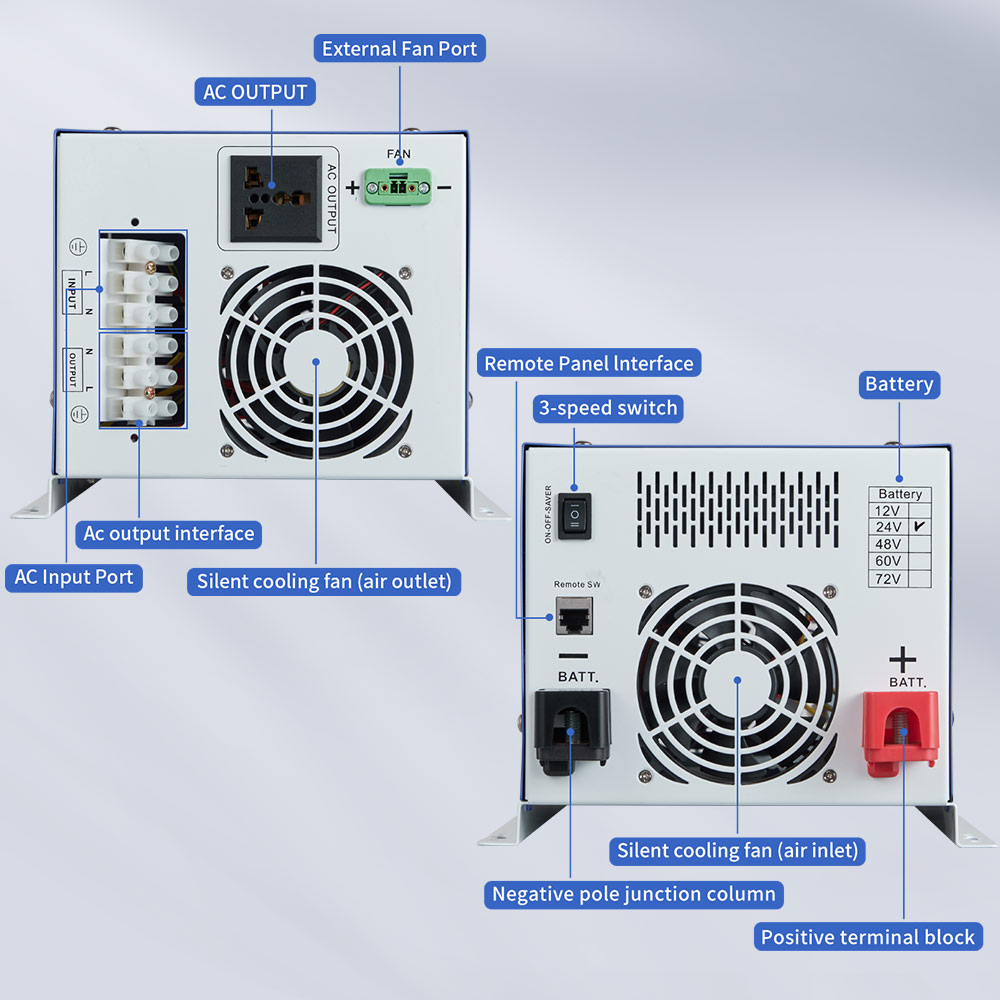

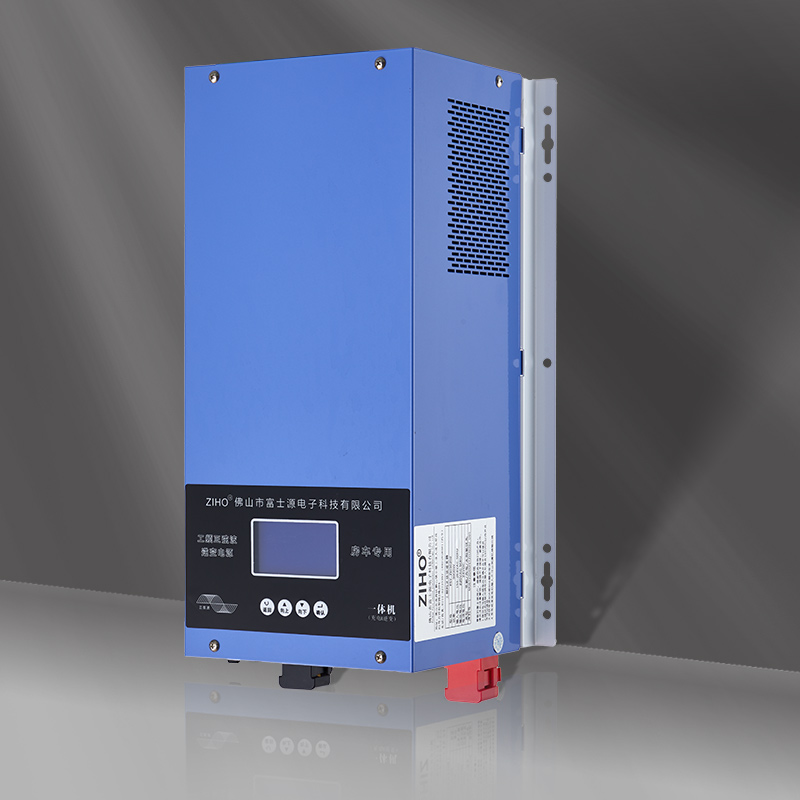

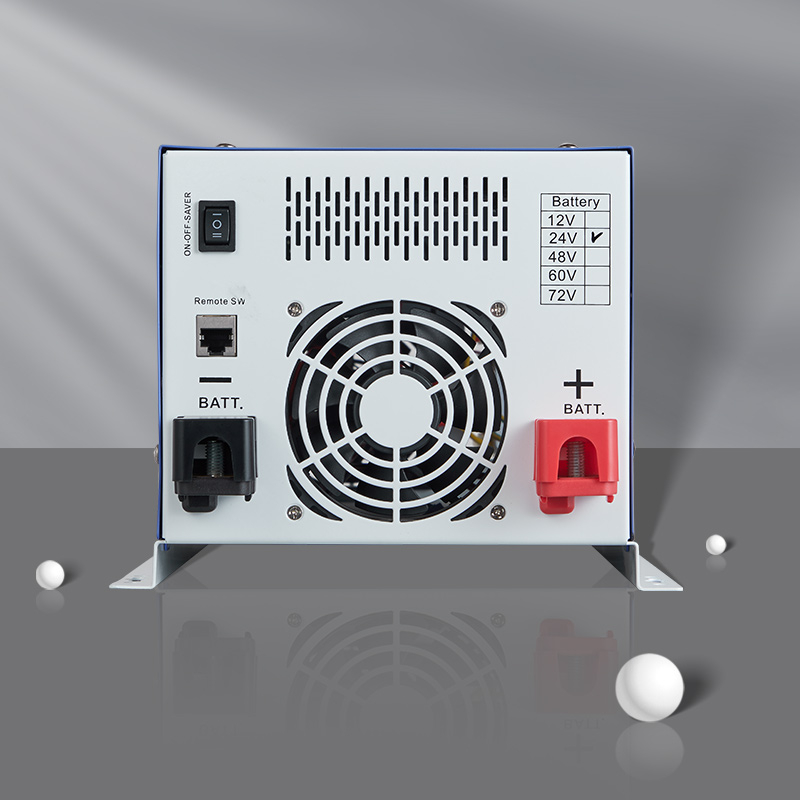

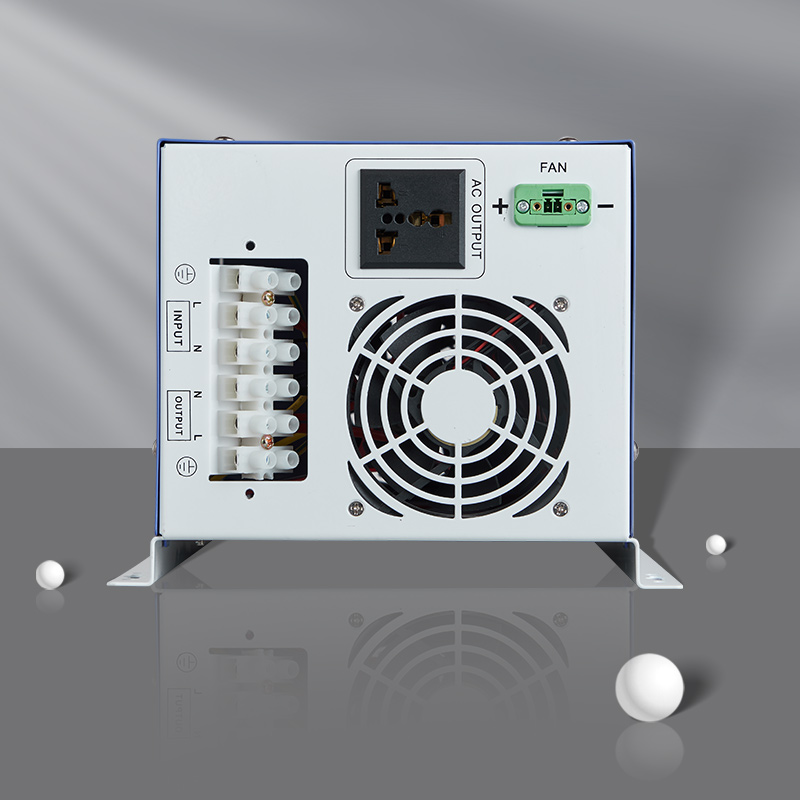

Custom 3KW RV Inverter
Machine Model(FSY-ZH)30201/0204/05/06INPUTBattery Voltage12V/24V/48V/60V/72VMains Voltage110V/220VMains Power Range154-264VAC/185-264VACFrequency50/60HzOUTPUTPower3000WVoltage220V±5%Frequency50/60HzSelf-depletion20WEnergy-saving idle consumption3WWaveformPure Sine WaveTransmission Time (AC to D......
Send Inquiry
Product Description
| Machine Model(FSY-ZH) |
30201/02 04/05/06 |
| INPUT | |
| Battery Voltage | 12V/24V/48V/60V/72V |
| Mains Voltage | 110V/220V |
| Mains Power Range | 154-264VAC/185-264VAC |
| Frequency | 50/60Hz |
| OUTPUT | |
| Power | 3000W |
| Voltage | 220V±5% |
| Frequency | 50/60Hz |
| Self-depletion | 20W |
| Energy-saving idle consumption | 3W |
| Waveform | Pure Sine Wave |
| Transmission Time (AC to DC) | ＜8ms |
| Transmission Time (DC to AC) | ＜8ms |
| Output Voltage Regulation | 210V-240V |
| Bypass Mode | yes |
| Energy Saving Mode | yes |
| Efficiency | ≥85% |
| PROTECTION | |
| Input Protection | Overcurrent Protection |
| Output Protection | CPU Protection |
| BATTERIES (need to be purchased separately) | |
| Battery Type | Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom) |
| Charging Method | Three-stage float charge/constant current and constant voltage |
| Mains Charging Voltage |
12V-three stage float charging:conventional 14.2V、float charging 13.8V、constant current and constant voltage:14.5V 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V：29V 48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage：58V 60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage：72.5V 72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage：87V |
| Mains Charging Current |
0-75A(12V) 0-40A(24V) 0-25A(48V) 0-12A(60V) 0-12A(72V) |
| Load Capacity | |
| Resistive Load | Below 3KW |
| Includes the following 12V 3000W Below 2500W 24V 6000W Below5000W | |
| Inductive Load | Below 1100W |
| Alarm | |
| Low Battery Alarm | Audible Alarm - 5 seconds beep |
| Overload Alarm | Audible Alarm - Continuous beep |
| Fault Alarm | Audible Alarm - Continuous beep |
| Environment | |
| Temperature | 0-40℃ |
| Humidity | 0-90% (non-condensing) |
| Noise | ＜60dB |
| Size | |
| Dimensions(Length*width*height cm) | Inverter 48*23*17.5 |
| Packaging(length*width*height cm) | inverter58*28*28 |
| Inverter Weight KG | 20 |
**The above parameters are for reference only. If there are any changes please refer to the actual product
