24V 1000W Frequency Sine Wave Inverter

ZIHO® is a new energy manufacturing company in China that integrates R&D, production, sales and service of 24V 1000W Frequency Sine Wave Inverters. It is widely used in photovoltaic power generation, office UPS power supply, outdoor lighting and so on. For more than 10 years, we have been specializing in the R&D and manufacturing of off-grid me inverters. We support ODM and OEM, and our products are sold in large quantities covering most of the Southeast Asian markets. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

FSY-Smart10202 24V 1000W Frequency Sine Wave Inverter Multiple protection functions such as short circuit, overload, over/under voltage and overheating. High-current charging with mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. Can be used for: kettle, fan, computer, oven, 1000W resistive load, 350W motor, etc.

Machine Model	FSY-Smart10202
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	1000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.6V, constant current and constant voltage 29V
Charging Current	0-15A
loadability
Resistive loads	Below 1000W
Inductive loads	Below 350W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	482219
Package size LWH cm	532727
Inverter weight KG	12

Product Features and Applications of 24V 1000W Industrial Frequency Sine Wave Inverter

24V 1000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 1000W resistive load, 350W motor, etc.

Product Details for 24V 1000W Sine Wave Inverter

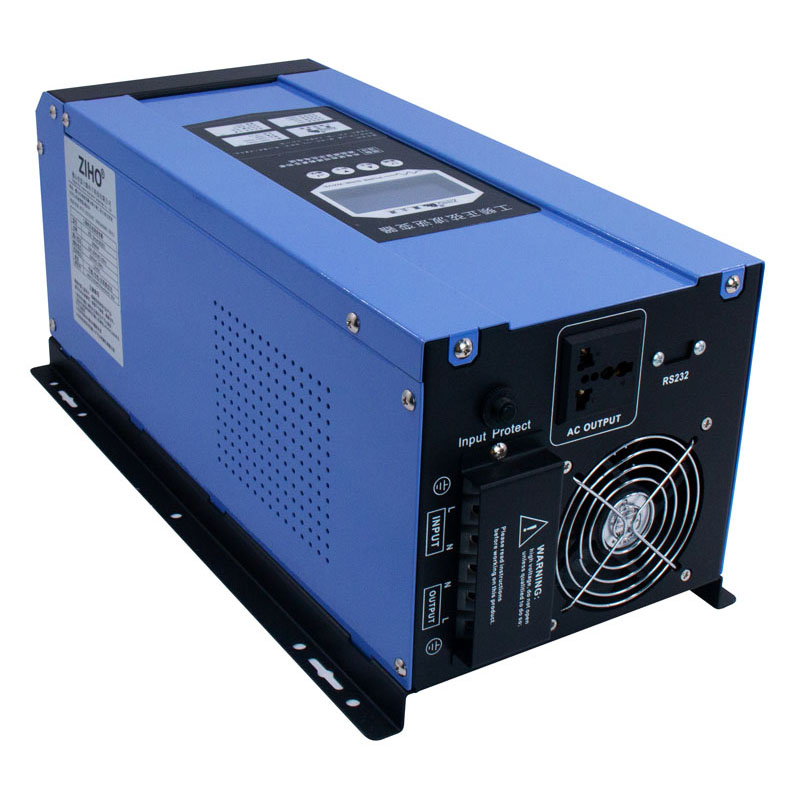

Front

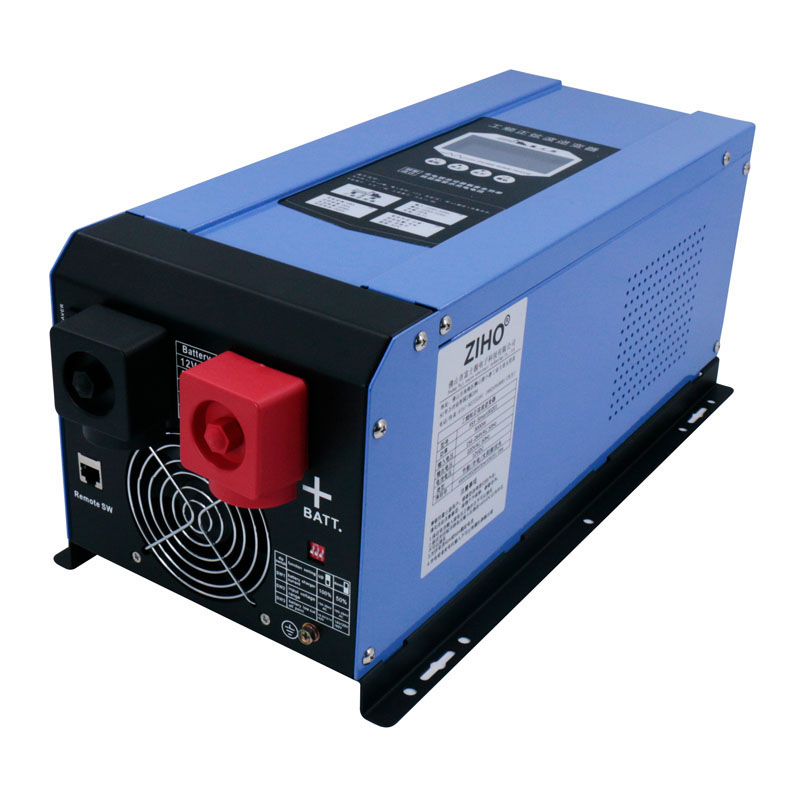

Backside

Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
