24V 4000W Frequency Sine Wave Inverter

ZIHO® is a new energy manufacturing company in China that integrates 24V 4000W frequency sine wave inverter R&D, production, sales and service. Intelligent protection, stable output. The inverter is suitable for: transportation ships, trucks, photovoltaic energy storage and other fields. We are looking forward to be your long-term partner in China.

Model:FSY-Smart40202

Send Inquiry

Product Description

FSY-Smart40202 24V 4000W Frequency Sine Wave Inverter Multiple protection functions such as short circuit, overload, over/under voltage and overheating. High-current charging with mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. Can be used for: cutting machine, electric drill, angle grinder, washing machine, water heater, water pump, 4000W resistive load, 1500W motor, and so on.

Machine Model	FSY-Smart40202
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	4000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.6V, constant current and constant voltage 29V
Charging Current	0-60A
loadability
Resistive loads	Below 4000W
Inductive loads	Below 1500W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	662219
Package size LWH cm	752727
Inverter weight KG	24

Product Features and Applications of 24V 4000W Industrial Frequency Sine Wave Inverter

24V 4000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 4000W resistive load, 1500W motor, etc.

Product Details for 24V 4000W Sine Wave Inverter

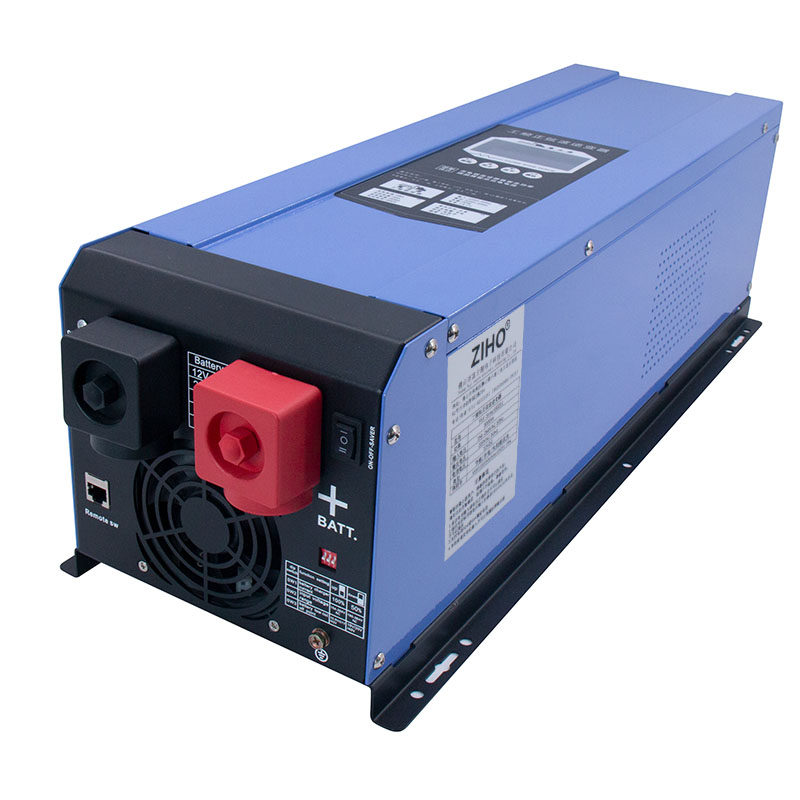

Front

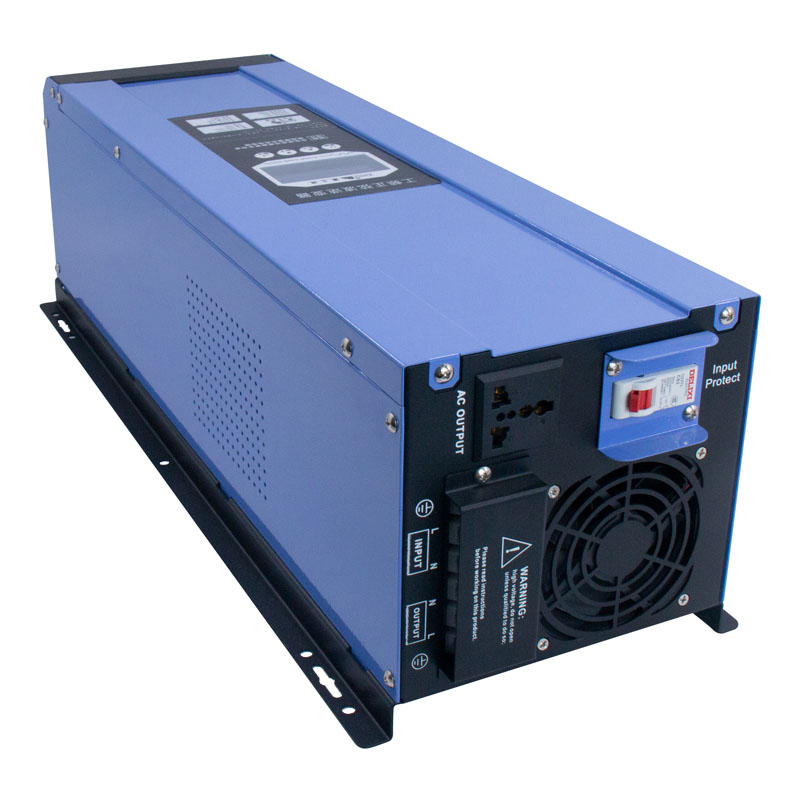

Backside

Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
