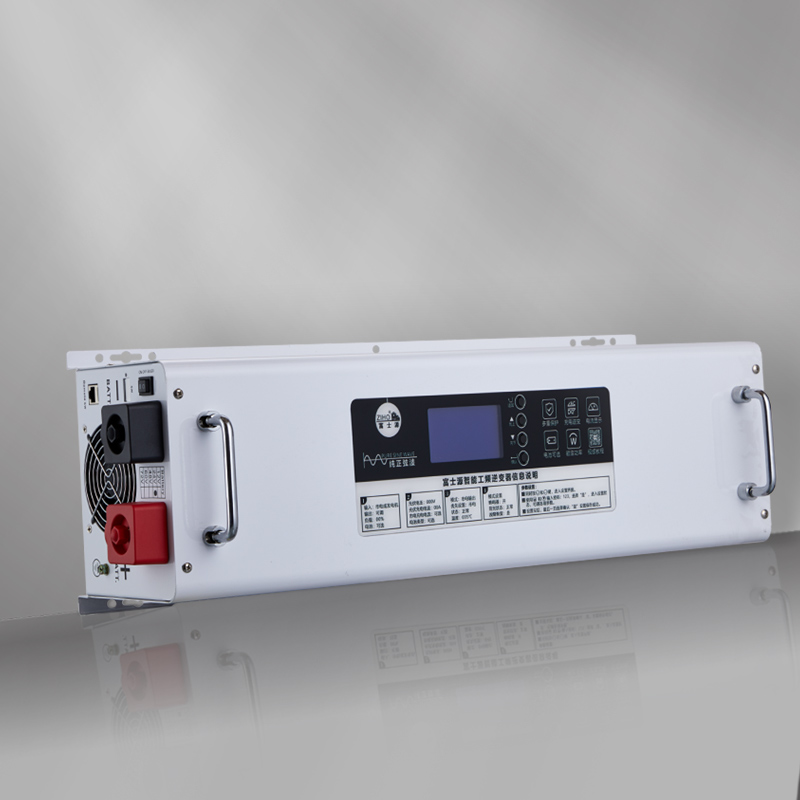

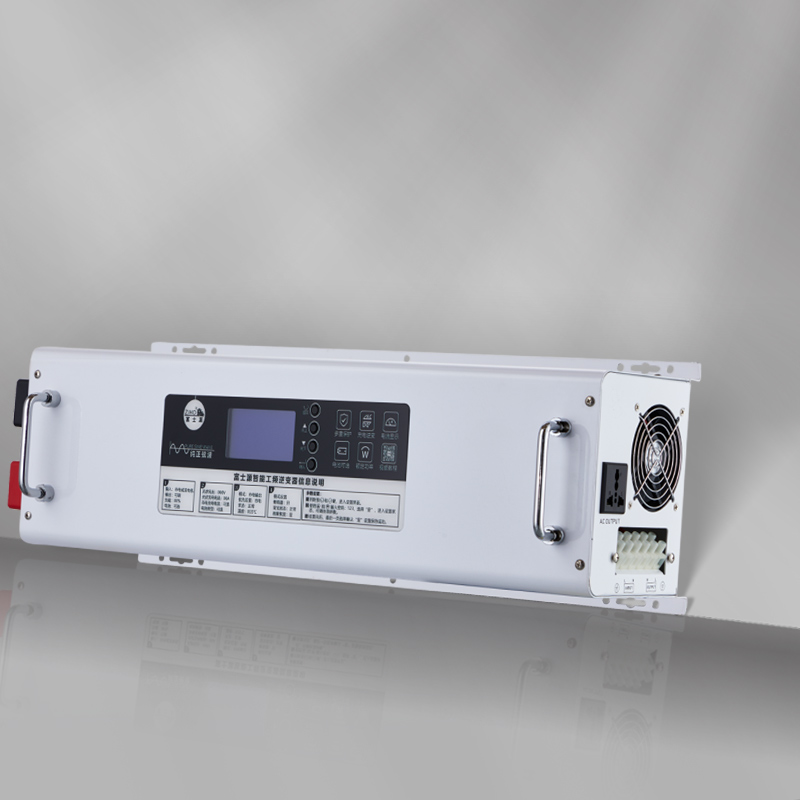

4KW 5KW 6KW 7KW 8KW Industrial Frequency Inverter

● 4KW 5KW 6KW 7KW 8KW Industrial Frequency Inverter:7 working modes, in mains\solar\energy-saving mode, all with unattended, generator, backlight and output mode adjustable when needed; new status display bar, self-check fault, restart function;
● Protect against inductive lightning strike once when grounding is good;
● Alarm sound can be turned on and off automatically;
● Real-time digital display of mains charging current;
● Mains charging cut-off voltage is adjustable, and charging current has 11 gears precisely adjustable;
● Output 210V-240V adjustable;
● 50Hz/60Hz adjustable;
● Factory settings can be restored;
● Support various types of batteries, you can choose by yourself;
● Chinese and English can be switched by yourself;
● Independent mains activated lithium battery module;
● Integrated output-only and charging-only modules can reach double power under mains.

Send Inquiry

Product Description

High quality 4KW 5KW 6KW 7KW 8KW Industrial Frequency Inverter is offered by China manufacturer Jingxing. Buy Industrial Frequency Inverter which is of high quality directly with low price.

Machine Model(FSY-PDD)	40202/04/05/06	50202/04/05/06	60202/04/05/06	70204/05/06	80204/05/06
INPUT
Battery Voltage	24V/48V/60V/72V	24V/48V/60V/72V	24V/48V/60V/72V	48V/60V/72V	48V/60V/72V
Mains Voltage	110V/220
Mains Power Range	154-264VAC/185-264VAC
Frequency	50/60Hz
OUTPUT
Power	4000W	5000W	6000W	7000W	8000W
Voltage	220V±5%
Frequency	50/60Hz
Self-depletion	25W	28W	32W	36W	38W
Energy-saving idle consumption	3W	3W	3W	3W	3W
Waveform	Pure Sine Wave
Transmission Time (AC to DC)	＜8ms
Transmission Time (DC to AC)	＜8ms
Output Voltage Regulation	210V-240V
Bypass Mode	yes
Energy Saving Mode	yes
Efficiency	≥85%
PROTECTION
Input Protection	Circuit Breaker
Output Protection	CPU Protection
BATTERIES (need to be purchased separately)
Battery Type	Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom)
Charging Method	Three-stage float charge/constant current and constant voltage
Mains Charging Voltage	12V-three stage float charging:conventional 14.2V、float charging 13.8V、constant current and constant voltage:14.5V 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V：29V 48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage：58V 60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage：72.5V 72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage：87V
Mains Charging Current	0-60A(24V) 0-30A(48V) 0-15A(60V) 0-15A(72V)	0-60A(24V) 0-30A(48V) 0-18A(60V) 0-18A(72V)	0-80A(24V) 0-40A(48V) 0-23A(60V) 0-23A(72V)	0-50A(48V) 0-26A(60V) 0-26A(72V)	0-50A(48V) 0-30A(60V) 0-30A(72V)
Load Capacity
Resistive Load	Below 4KW	Below 5KW	Below 6KW	Below 7KW	Below 8KW
	Includes the following 12V 3000W Below 2500W 24V 6000W Below5000W
Inductive Load	Below 1500W	Below 2000W	Below 2200W	Below 2500W	Below 3000W
Alarm
Low Battery Alarm	Audible Alarm - 5 seconds beep
Overload Alarm	Audible Alarm - Continuous beep
Fault Alarm	Audible Alarm - Continuous beep
Environment
Temperature	0-40℃
Humidity	0-90% (non-condensing)
Noise	＜60dB
Size
Dimensions(Lengthwidthheight cm)	inverter 672219
Packaging(lengthwidthheight cm)	inverter 732626
Inverter Weight KG	23	26	29	33	34
