24V 2000W Industrial Frequency Inverter

Foshan Fuji Source Electronic Technology Co., Ltd's brand ZIHO 24V 2000W industrial frequency inverter has the advantages of more advanced, more stable, more practical, multi-functional and fine workmanship. The utility power is complementary and the charging cut-off voltage is adjustable, which is suitable for home backup power, outdoor power supply and other scenarios. The company has its own product patents and R&D team. With advanced production equipment, we are a professional and personalized new energy company integrating R&D, production, design and sales. The products are sold in large quantities to most markets in Southeast Asia. We support ODM and OEM, and our products are sold to most markets in Southeast Asia. We are looking forward to being your long-term partner in China. Off-grid power supply is the brand name of Fujiyuan ZIHO.

Send Inquiry

Product Description

FSY-PDD20202/24V 2000W industrial inverter has the advantages of advanced, stable, multi-functional and excellent workmanship. 24V 2000W Industrial Frequency Inverter can be used continuously for a long time and matched with most electrical equipment. Supports utility power charging with 11 adjustable gears. Utility power can charge the battery, real-time display of charging current. Supports multiple battery types and can switch multiple languages.

Machine Model	FSY-PDD20202
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	2000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.6V, constant current and constant voltage 29V
Charging Current	0-40A
loadability
Resistive loads	Below 2000W
Inductive loads	Below 750W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	492219
Package size LWH cm	532727
Inverter weight KG	14

Product Features and Applications of 24V 2000W Industrial Frequency Inverter

24V 2000W industrial frequency inverter, with short circuit, overload, overvoltage/undervoltage, over temperature and other protection functions. Digital display screen, real-time display of charging current and other parameters. With UPS function, automatic conversion without human operation. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 2000W resistive load, 750W motor, etc..

Product Details for 24V 2000W Industrial Frequency Inverter

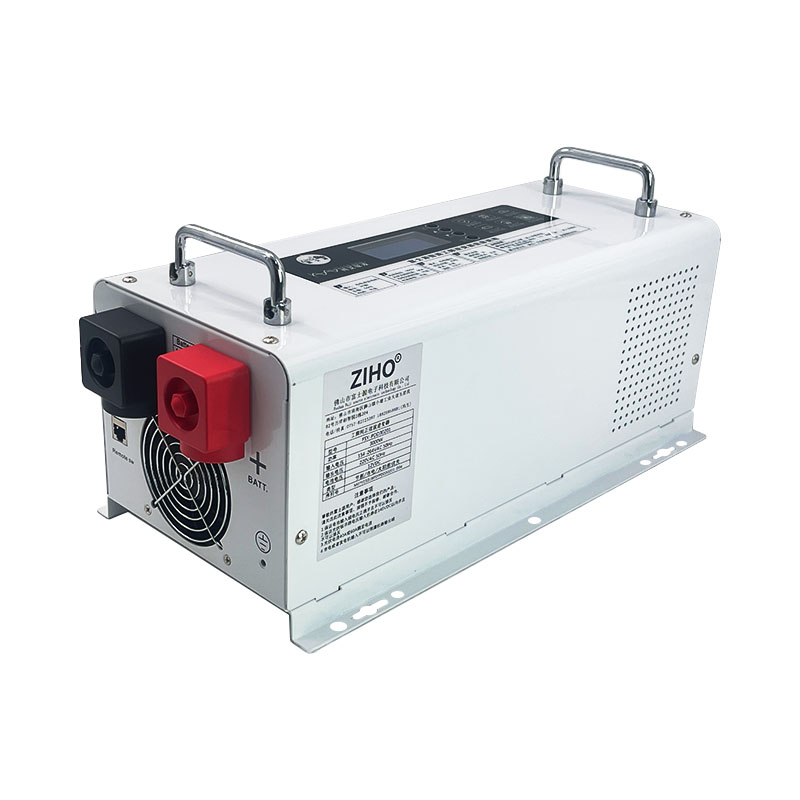

Front

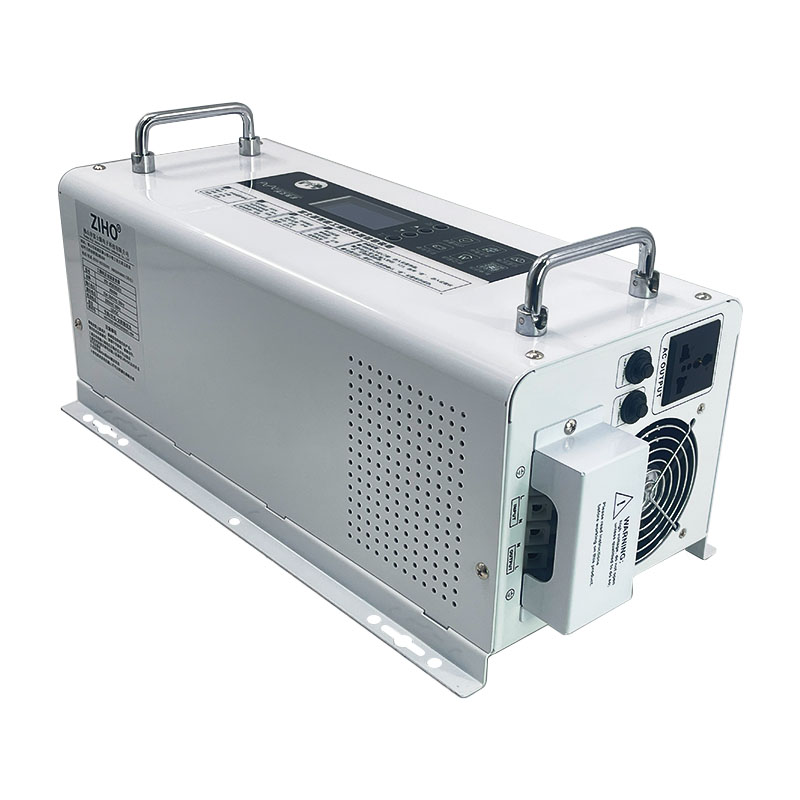

Backside

Product Detail Show

Easy to understand and operate at a glance

Digital display large screen, display the parameter data, and the user can set the inverter parameters, and at the same time, press "Return" and "Confirm" to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching, and so on.
