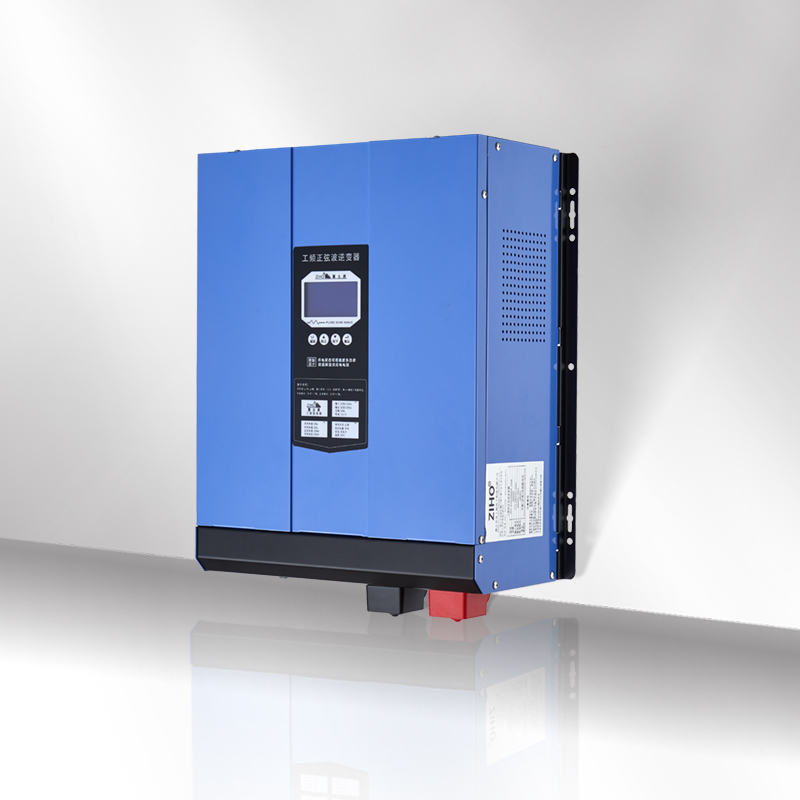

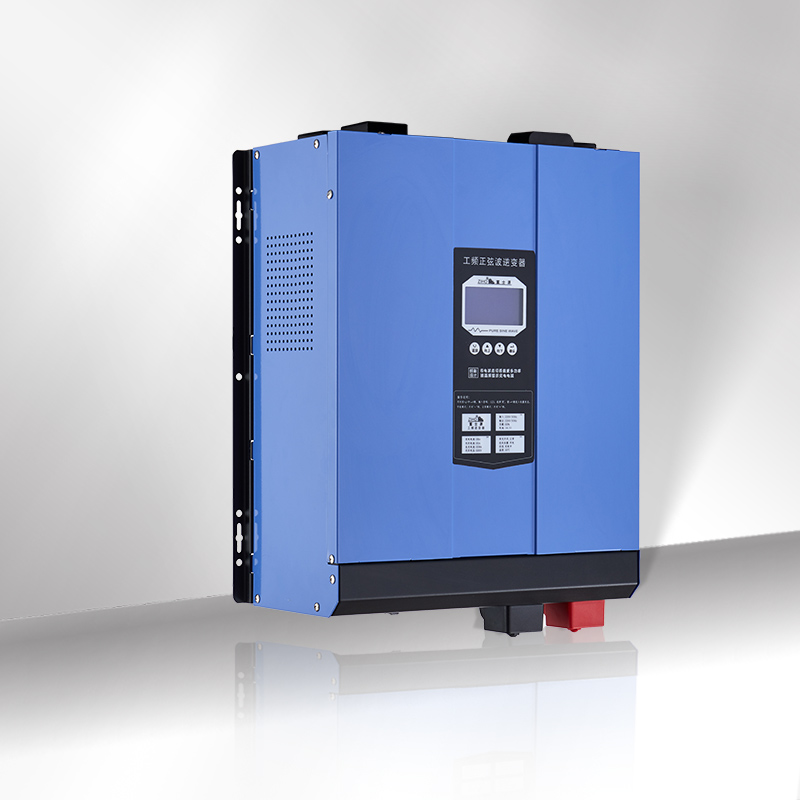

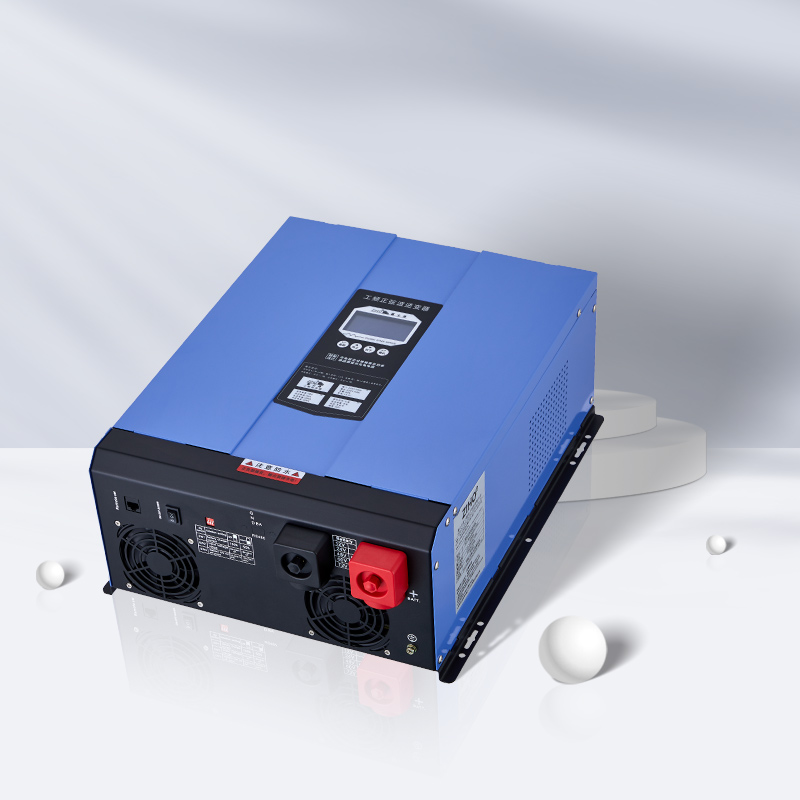

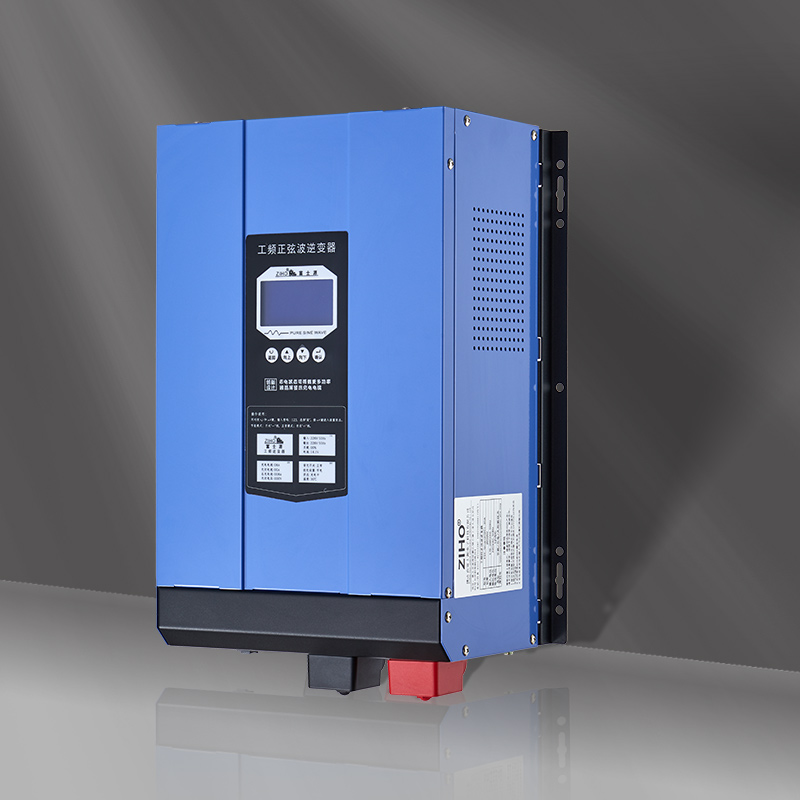

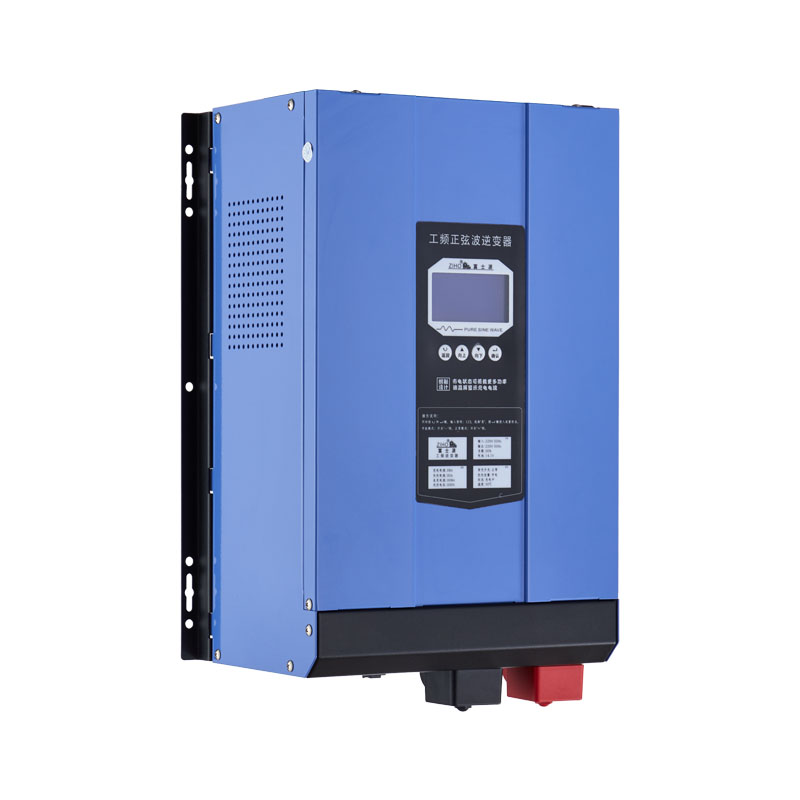

3KW-8KW140AMPPT Solar Inverter
Machine Model(FSY-Smartintegrated machine)30201/02/04/05/06-70A/140A40202/04/05/06-70A/140A50202/04/05/06-70A/140A60202/04/05/06-70A/140A70204/05/06-70A/140A80204/05/06-70A/140AINPUTBattery Voltage12V/24V/48V/60V/72V24V/48V/60V/72V24V/48V/60V/72V24V/48V/60V/72V48V/60V/72V48V/60V/72VMains Voltage110V......
Send Inquiry
Product Description
| Machine Model(FSY-Smartintegrated machine) | 30201/02/04/05/06-70A/140A | 40202/04/05/06-70A/140A | 50202/04/05/06-70A/140A | 60202/04/05/06-70A/140A | 70204/05/06-70A/140A | 80204/05/06-70A/140A | |
| INPUT | |||||||
| Battery Voltage | 12V/24V/48V/60V/72V | 24V/48V/60V/72V | 24V/48V/60V/72V | 24V/48V/60V/72V | 48V/60V/72V | 48V/60V/72V | |
| Mains Voltage | 110V/220V | ||||||
| Mains Power Range | 154-264VAC/185-264VAC | ||||||
| Frequency | 50/60Hz | ||||||
| OUTPUT | |||||||
| Power | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | |
| Voltage | 220V±5% | ||||||
| Frequency | 50/60Hz | ||||||
| Self-depletion | 20W | 25W | 28W | 32W | 36W | 38W | |
| Energy-saving idle consumption | 3W | 3W | 3W | 3W | 3W | 3W | |
| Waveform | Pure Sine Wave | ||||||
| Transmission Time (AC to DC) | ＜8ms | ||||||
| Transmission Time (DC to AC) | ＜8ms | ||||||
| Output Voltage Regulation | 210V-240V | ||||||
| Bypass Mode | yes | ||||||
| Energy Saving Mode | yes | ||||||
| Efficiency | ≥85% | ||||||
| PROTECTION | |||||||
| Input Protection | Circuit Breaker | ||||||
| Output Protection | CPU Protection | ||||||
| BATTERIES (need to be purchased separately) | |||||||
| Battery Type | Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom) | ||||||
| Charging Method | Three-stage float charge/constant current and constant voltage | ||||||
| Mains Charging Voltage |
12V-three stage float charging:conventional 14.2V、float charging 13.8V、constant current and constant voltage:14.5V 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V：29V 48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage：58V 60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage：72.5V 72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage：87V |
||||||
| Mains Charging Current |
0-75A(12V) 0-40A(24V) 0-25A(48V) 0-12A(60V) 0-12A(72V) |
0-60A(24V) 0-30A(48V) 0-15A(60V) 0-15A(72V) |
0-60A(24V) 0-35A(48V) 0-18A(60V) 0-18A(72V) |
0-80A(24V) 0-40A(48V) 0-23A(60V) 0-23A(72V) |
0-50A(48V) 0-26A(60V) 0-26A(72V) |
0-50A(48V) 0-30A(60V) 0-30A(72V) |
|
| Load Capacity | |||||||
| Resistive Load | Below 3KW | Below 4KW | Below 5KW | Below 6KW | Below 7KW | Below 8KW | |
| Includes the following 12V 3000W Below 2500W 24V 6000W Below 5000W | |||||||
| Inductive Load | Below 1100W | Below 1500W | Below 2000W | Below 2200W | Below 2500W | Below 3000W | |
| Photovoltaic | Only reverse control integrated machine specifications | ||||||
| Controller | MPPT | ||||||
| Connectable voltage range(lead-acid battery) | 70A-12V/24V/48V/60V/72V:0-960W/1920W/3840W/4800W/5760W | ||||||
| 140A-12V/24V/48V/60V/72V/:0-1920W/3840W/7600W/9600W/11520W | |||||||
| Connectable voltage range(LiFePO4) | 70A-12V/24V/48V/60V/72V:0-1020W/2040W/4080W/5100W/6120W | ||||||
| 140A-12V/24V/48V/60V/72V:0-2040W/4080W/8160W/10200W/12240W | |||||||
| Voltage range with solar panel | 70A-12V/24V/48V/60V/72V:18V-150V/36V-150V/72V-150V/90V-180V/108V-180V | ||||||
| 140A-12V/24V/48V/60V/72V:18V-150V/36V-150V/72V-150V/90V-180V/108V-180V | |||||||
| Recommended solar panel voltage range | 70A-12v/24V/48V/60V/72V:36V-145V/54V-145V/90V-145V/108V-175V/108V-175V | ||||||
| 140A-12v/24V/48V/60V/72V:36V-145V/54V-145V/90V-145V/108V-175V/108V-175V | |||||||
| Voltage | 12V/24V/48V/60V/72V | ||||||
| Current | 40A/60A/70A/140A | ||||||
| Alarm | |||||||
| Low Battery Alarm | Audible Alarm - 5 seconds beep | ||||||
| Overload Alarm | Audible Alarm - Continuous beep | ||||||
| Fault Alarm | Audible Alarm - Continuous beep | ||||||
| Environment | |||||||
| Temperature | 0-40℃ | ||||||
| Humidity | 0-90% (non-condensing) | ||||||
| Noise | ＜60dB | ||||||
| Size | |||||||
| Dimensions(Length*width*height cm) | Integrated machine 50*31*19 | integrated machine 64*33*19 | |||||
| Packaging(length*width*height cm) | Integrated machine 56*37*28.5 | integrated machine73*37*29 | |||||
| Inverse control integrated machine weight KG | 22 | 30 | 31 | 35 | 36 | 38 | |
**The above parameters are for reference only. If there are any changes please refer to the actual product
