48V 6000W-140A MPPT Solar Inverter

Fujiyuan ZIHO® is a solar inverter manufacturer in China. The factory produces 48V 6000W-140A MPPT Solar Inverters with built-in 140A MPPT solar controller, which can simultaneously support 50A current charging from the utility and is recommended for connecting 7,280 watts of solar panels in the 67V-150V voltage range. It has lightning protection, output only function and 11 adjustable charging steps. Our partners cover most of Southeast Asia. Our 48V 6000W Off-Grid Solar Inverters are widely used in home PV energy storage power system, marine PV power system, RV power system, industrial power system, etc. For advanced and high quality power supply products, please pay attention to the brand of Fujiyuan ZIHO. We look forward to being your long-term partner in China.

Send Inquiry

Product Description

48V 6000W-140A MPPT solar inverter with multiple protection features. Lightning protection function, numerical display large screen. Support up to 7280 watts of solar panels, access voltage is recommended to be controlled between 67V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker, electric drill, cutting machine, etc.

Machine Model	FSY-Smart60204-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	6000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-40A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	140A
loadability
Resistive loads	Below 6000W
Inductive loads	Below 2200W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	34

Solar Inverter 48V 6000W MPPT Product Characteristics and Applications

48V 6000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 6000W resistance load, 2200W motor, etc.

Product Details for 48V 6000W-140A MPPT Solar Inverter

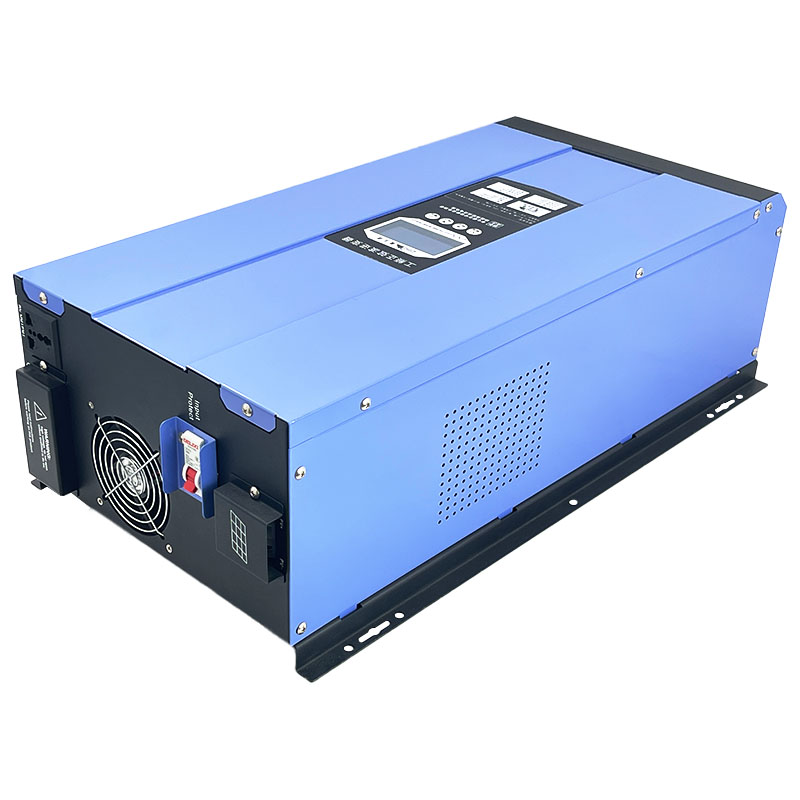

Front

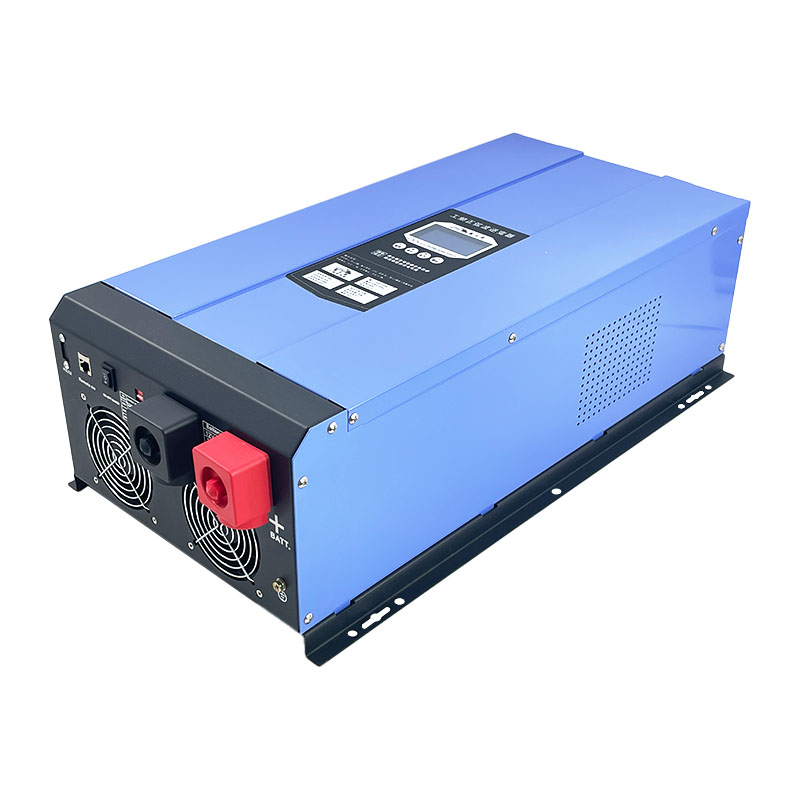

Backside

6000W 48V All-in-One Solar Inverter Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
