48V 8000W-140A MPPT Solar Inverter

Chinese solar inverter manufacturer: FujiSource ZIHO® introduces the 448V 8000W-140A MPPT Solar Inverter, which can simultaneously support 50A mains charging and 140A solar current charging, with up to 7280 W of solar panels recommended to be connected, automatic mains replenishment, a range of solar input voltages from 67V-150V, a range of customizable setup parameters, a new generation of solar Inverter lightning protection and many other smart technologies. Charging 11 adjustable levels, automatic recovery point can be set, multiple languages can be switched, multiple protection functions. Our partners cover most of Southeast Asia. Our products are widely used in home PV energy storage power systems, marine PV power systems, RV power systems, industrial power systems, etc. For advanced, high-quality power products, please focus on the Fujiyuan ZIHO brand. We look forward to being your long-term partner in the following areas

Send Inquiry

Product Description

48V 8000W-140A MPPT Solar Inverter with multiple protection functions and unattended automatic switching (UPS function). Supports up to 7280 watts of solar panels, access voltage is recommended to be controlled between 67V-150V, real-time display of charging current, charging has 11 gears can be set. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for various scenarios and various electrical appliances, such as: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker, electric drill, cutter and so on.

Machine Model	FSY-Smart80204-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	8000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-50A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	140A
loadability
Resistive loads	Below 8000W
Inductive loads	Below 3000W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	38

48V 8000W-140A MPPT Solar Inverter Product Characteristics and Applications

48V 8000W-140A MPPT Solar Inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 8000W resistance load, 3000W motor, etc.

Product Details for 48V 8000W-140A MPPT Solar Inverter

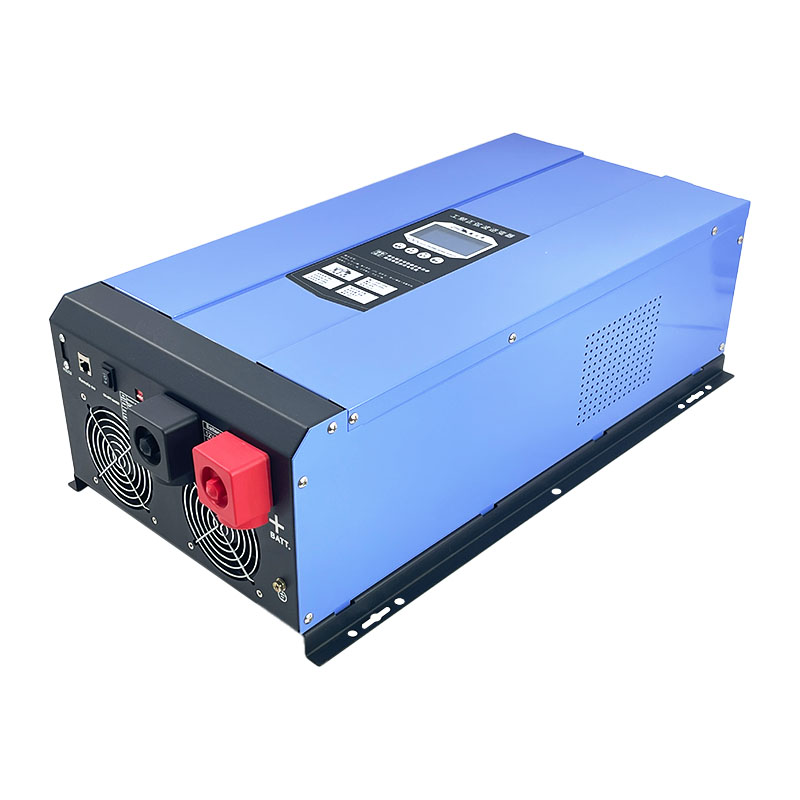

Front

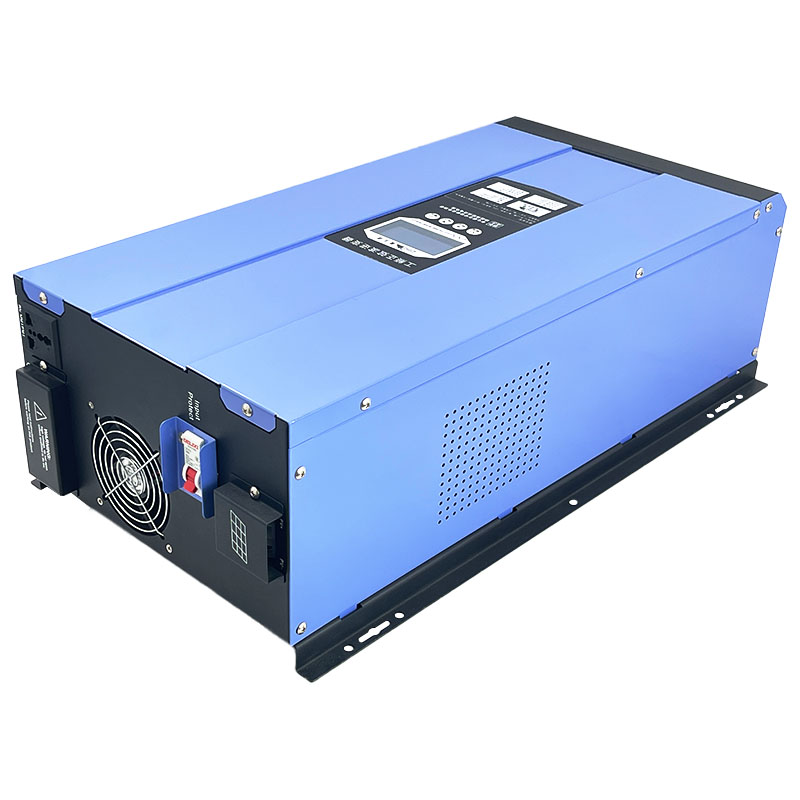

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
