12V 2000W-140A MPPT Solar Inverter

Fujiyuan ZIHO® is a Chinese manufacturer that develops and produces solar inverters. The factory produces 12V 2000W-140A MPPT solar inverters with built-in 140A-MPPT solar controllers, which support utility 50A charging and solar panel current generation up to 140A. The all-in-one unit combines two charging functions, making charging and discharging more convenient. Our partners cover most of Southeast Asia. It is widely used in home solar power system, company new energy storage uninterruptible system and so on. For advanced, high-quality power supplies, look to the Fuji Source ZIHO brand. We look forward to being your long-term partner in China.

Model:FSY-Smart20201-140A

Send Inquiry

Product Description

12V 2000W-140A MPPT solar inverter has multiple protection functions such as short circuit, overload, over/under voltage and overheat. Supports up to 140A solar panel power generation current and up to 50A utility charging current. Real-time display of charging current, unattended automatic switching, UPS uninterrupted function. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: household lighting, computers, refrigerators, water boilers and other electrical appliances.

Machine Model	FSY-Smart20201-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	2000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 14.2V, float charging 13.8V, constant current and constant voltage 14.5V
Charging Current	0-50A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	12V
Current	140A
loadability
Resistive loads	Below 2000W
Inductive loads	Below 750W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	563729
Package size LWH cm	583931
Inverter weight KG	19.5

12V2000W-140A MPPT Solar Inverter Product Characteristics and Applications

12V2000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 2000W resistance load, 750W motor, etc.

Product Details for 12V2000W-140A MPPT Solar Inverter

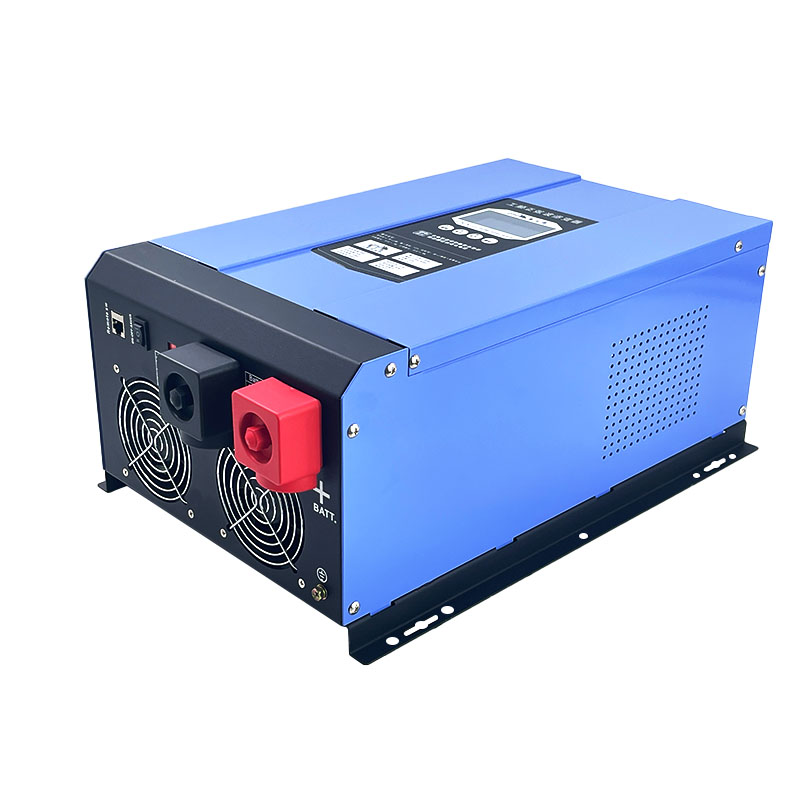

Front

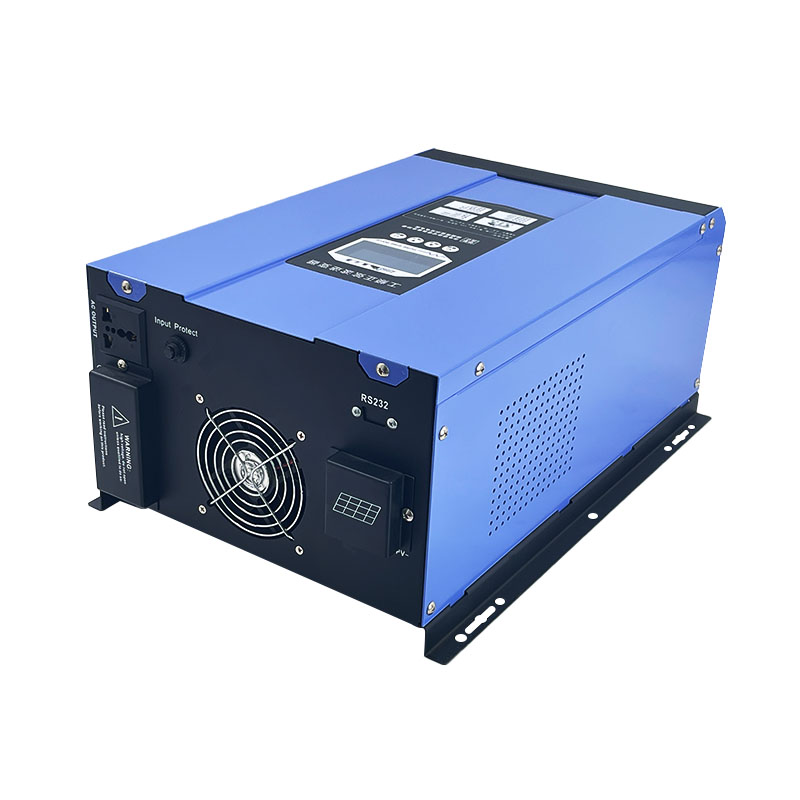

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
