12V 3000W-140A MPPT Solar Inverter

Chinese manufacturer of solar inverters: Fujiyuan ZIHO® produces 12V 3000W-140A MPPT Solar Inverter with built-in 140A-MPPT solar controller that supports 75A charging from utility and 140A internal current generation from solar panel. It has lightning protection function. Our partners cover most of Southeast Asia. It is widely used in solar energy storage systems, new energy uninterruptible power supply systems for companies/hospitals, and so on. For advanced, high-quality power supplies, look to the Fuji Source ZIHO brand. We look forward to being your long-term partner in China.

Model:FSY-Smart30201-140A

Send Inquiry

Product Description

12V 3000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage, over-temperature, and so on. Built-in MPPT solar controller, support utility charging and solar panel access for power generation, real-time display of charging current size, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: rice cooker, freezer, computer server, precision instruments, 3000W resistive load, 1100W motor, etc..

Machine Model	FSY-Smart30201-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	3000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 14.2V, float charging 13.8V, constant current and constant voltage 14.5V
Charging Current	0-75A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	12V
Current	140A
loadability
Resistive loads	Below 3000W
Inductive loads	Below 1100W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	563729
Package size LWH cm	583931
Inverter weight KG	22

12V3000W-140A MPPT Solar Inverter Product Characteristics and Applications

12V3000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage, over-temperature, and so on. Built-in MPPT solar controller, support utility charging and solar panel access for power generation, real-time display of charging current size, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: rice cooker, freezer, computer server, precision instruments, 3000W resistive load, 1100W motor, etc..

Product Details for 12V2000W-140A MPPT Solar Inverter

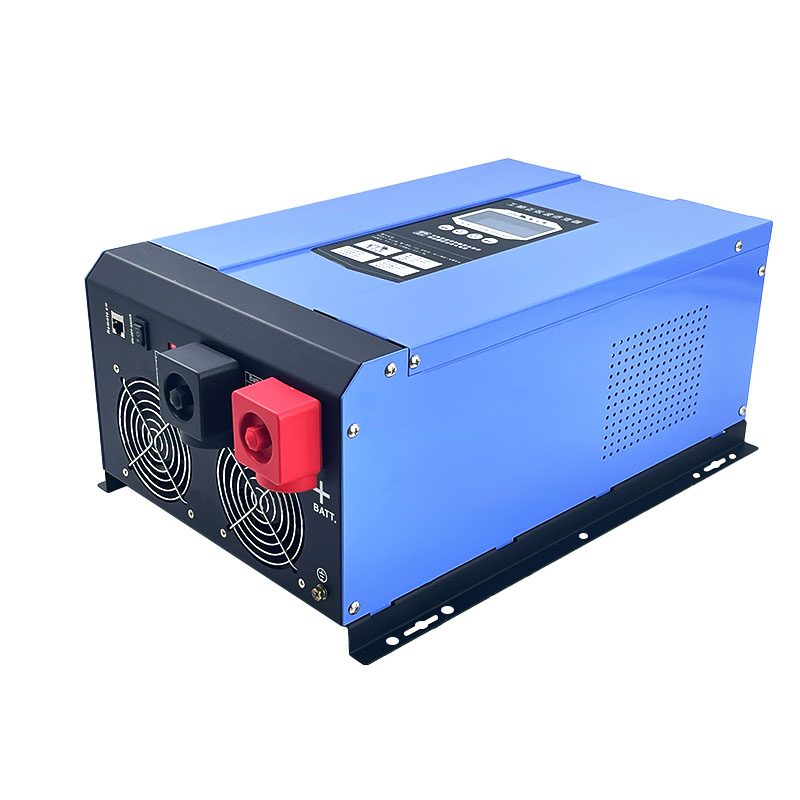

Front

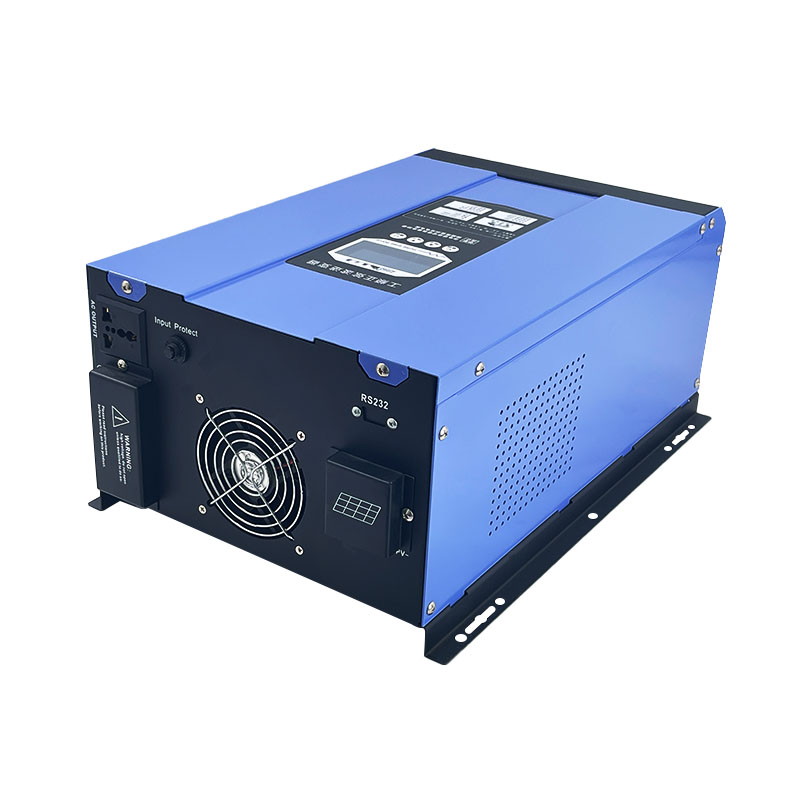

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
