24V 3000W-140A MPPT Solar Inverter

FUJIYUAN ZIHO® is a distinguished Chinese manufacturer renowned for its production of solar inverters. Among its notable offerings is the 24V 3000W-140A MPPT solar inverter, featuring an integrated 24V 140A MPPT solar controller. This innovative product is engineered to operate seamlessly within a recommended input voltage range of 39V-150V and is compatible with solar panels with a capacity of up to 3640 watts.FUJIYUAN ZIHO® solar inverters is their ability to stabilize output voltage while complementing utility power, ensuring consistent and reliable performance. These inverters find widespread application in various settings, including home solar energy storage systems, marine solar power systems, and beyond.

Model:FSY-Smart30202-140A

Send Inquiry

Product Description

24V 3000W-140A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheat and so on. Supports up to 140A solar panels, supports up to 3640 watts solar panels when connected in series, recommended control between 39V-150V after accessing, many intelligent technologies, high quality. Real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on.

Machine Model	FSY-Smart30202-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	3000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.2V, constant current and constant voltage 29V
Charging Current	0-40A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	24V
Current	140A
loadability
Resistive loads	Below 3000W
Inductive loads	Below 1100W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	563729
Package size LWH cm	583931
Inverter weight KG	22

24V 3000W-140A MPPT Solar Inverter Product Characteristics and Applications

24V3000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 3000W resistance load, 1100W motor, etc.

Product Details for 24V 3000W-140A MPPT Solar Inverter

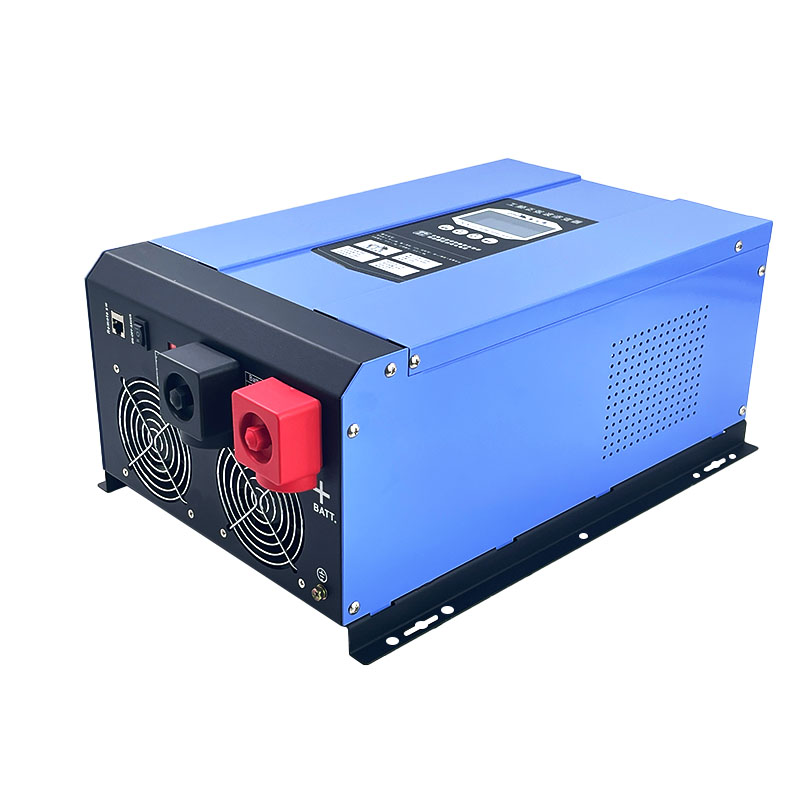

Front

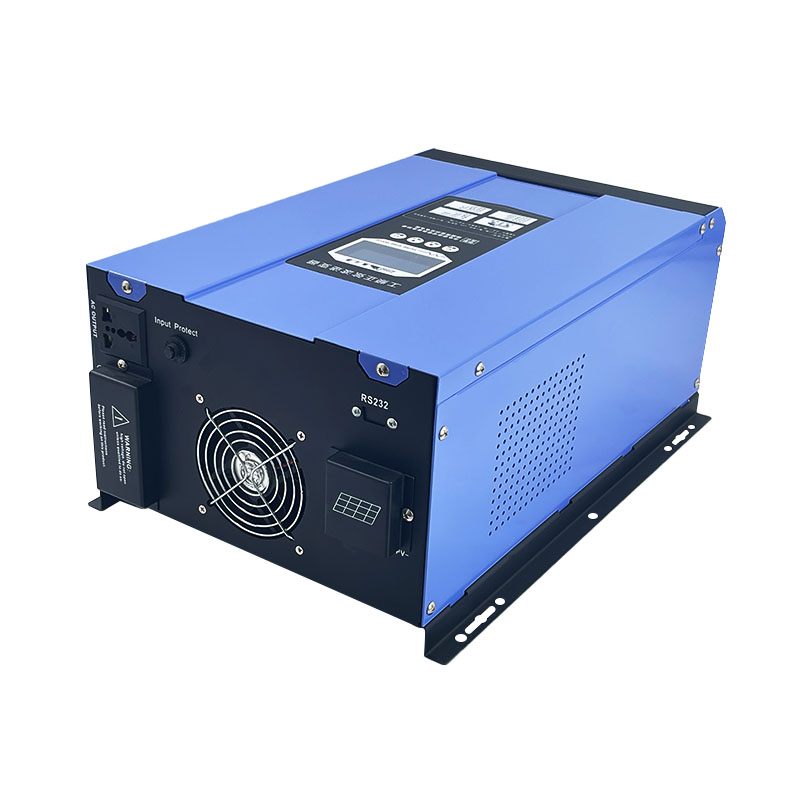

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
