24V 5000W-70A MPPT Solar Inverter

China solar inverter manufacturer: Fujiyuan ZIHO®, produces 24V 5000W-70A MPPT solar inverter with built-in 70A-MPPT solar controller, which supports solar panels up to 1820 Watt, and the recommended input voltage range of solar panels is 39V-150 V. Our partners cover most of Southeast Asia. It is widely used in home solar energy storage power system, marine solar power system, RV power system, outdoor industrial power and so on. For advanced, high-quality power supplies, please focus on the Fujiyuan ZIHO brand. We are looking forward to being your long-term partner in China.

Model:FSY-Smart50202-70A

Send Inquiry

Product Description

24V 5000W-70A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheat and so on. With lightning protection function, the access voltage is recommended to be controlled between 39V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: oven, microwave oven, electric water heater, refrigerator, air conditioner, induction cooker, dishwasher and so on.

Machine Model	FSY-Smart50202-70A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	5000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.2V, constant current and constant voltage 29V
Charging Current	0-60A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	24V
Current	70A
loadability
Resistive loads	Below 5000W
Inductive loads	Below 2000W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	32

24V 5000W-70A MPPT Solar Inverter Product Characteristics and Applications

24V 5000W-70A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 5000W resistance load, 2000W motor, etc.

Product Details for 24V 5000W-70A MPPT Solar Inverter

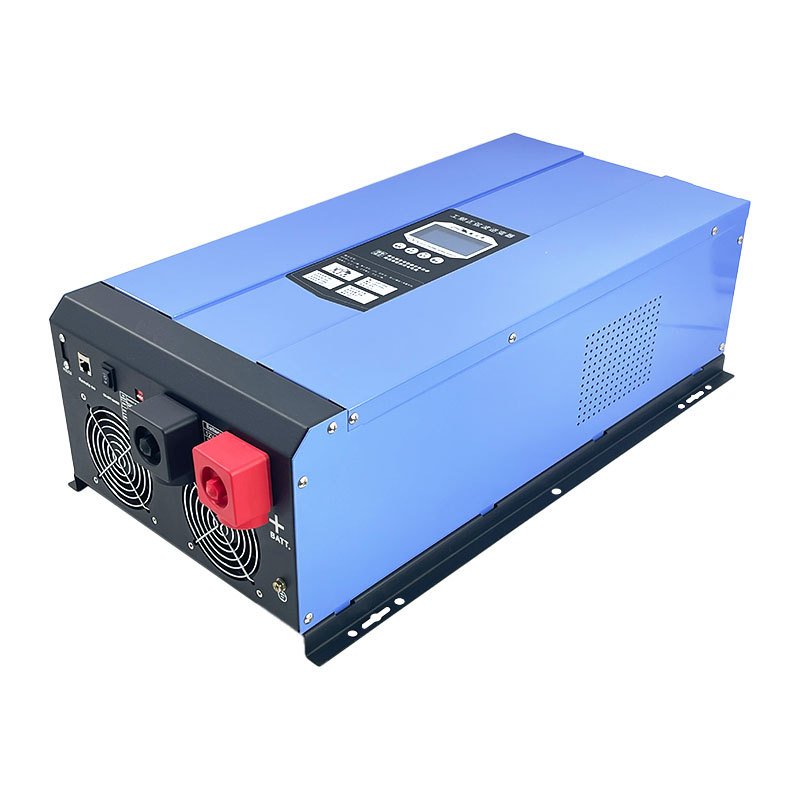

Front

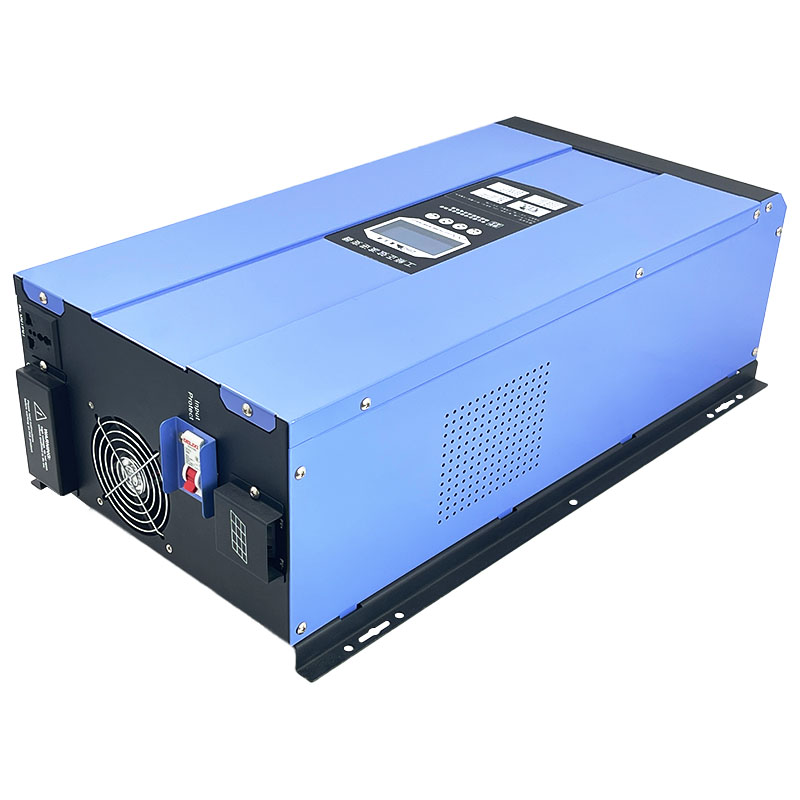

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
