24V 6000W-70A MPPT Solar Inverter

Fujiyuan ZIHO®, a leading solar inverter manufacturer in China, offers the 24V 6000W-70A MPPT solar inverters integrated with a 70A-MPPT solar controller. These inverters are designed to support solar panel setups of up to 1820 Watts, with a recommended input voltage range of 39V-150V. Additionally, they feature high-current charging capabilities of up to 80A from the grid.For cutting-edge, high-quality power supply products, consider the Fujiyuan ZIHO brand.

Model:FSY-Smart60202-70A

Send Inquiry

Product Description

24V 6000W-70A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheating and so on. With lightning protection function, adjustable output voltage, it is recommended that the PV access voltage control between 39V-150V, real-time display of charging current, stable output voltage. Suitable for: microwave ovens, electric water heaters, refrigerators, air conditioners, induction cookers, pumps, etc.

Machine Model	FSY-Smart60202-70A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	6000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.2V, constant current and constant voltage 29V
Charging Current	0-80A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	24V
Current	70A
loadability
Resistive loads	Below 5000W
Inductive loads	Below 2200W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	36

24V 6000W-70A MPPT Solar Inverter Product Characteristics and Applications

24V 6000W-70A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 5000W resistance load, 2200W motor, etc.

Product Details for 24V 6000W-70A MPPT Solar Inverter

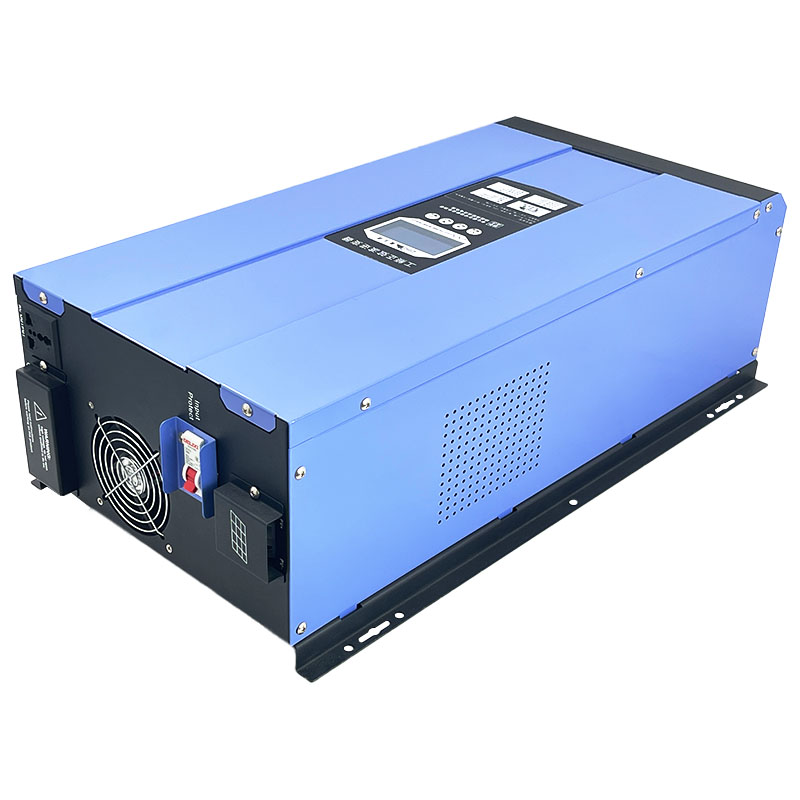

Front

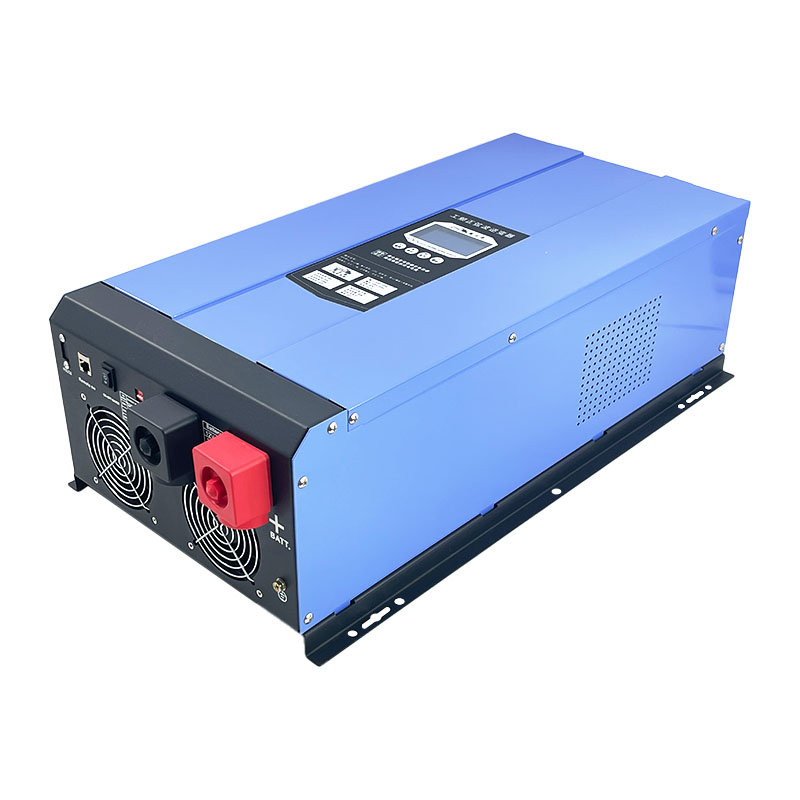

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
