48V 3000W-70A MPPT Solar Inverter

Fujiyuan ZIHO® is a Chinese manufacturer that develops and produces solar inverters. The factory produces 48V 3000W-70A MPPT solar inverters with built-in 70A-MPPT solar controller and 11 adjustable charging levels, with a pull code switch for quick setting. The output voltage is adjustable. Our partners cover most of Southeast Asia. It is widely used in home lighting power generation system, power station power generation system and so on. For advanced, high quality power supplies, please focus on the Fuji Source ZIHO brand. We are looking forward to being your long-term partner in China.

Model:FSY-Smart30204-70A

Send Inquiry

Product Description

48V 3000W-70A MPPT solar inverter with lightning strike protection and multiple protection. Supports up to 70A solar panels, 11 levels of adjustable current, real-time display of charging current, millisecond conversion speed. Output Voltage Adjustable and stable output voltage. Suitable for: computers, electric kettles, water heaters, water pumps and other electrical appliances.

Machine Model	FSY-Smart30204-70A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	3000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-25A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	70A
loadability
Resistive loads	Below 3000W
Inductive loads	Below 1100W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	563729
Package size LWH cm	583931
Inverter weight KG	21

48V 3000W-70A MPPT Solar Inverter Product Characteristics and Applications

48V 3000W-70A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 3000W resistance load, 1100W motor, etc.

Product Details for 48V 3000W-70A MPPT Solar Inverter

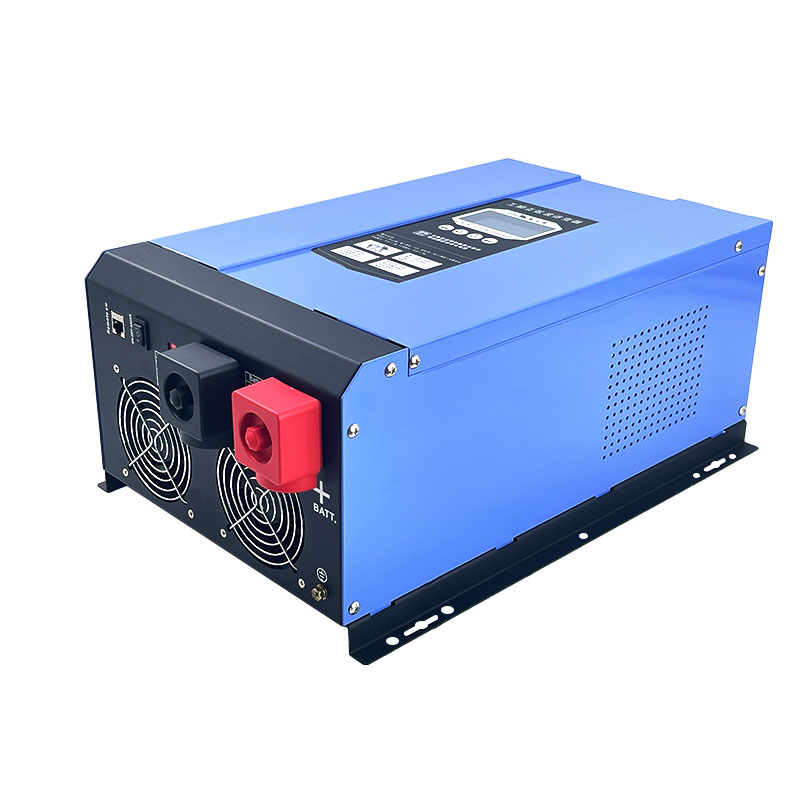

Front

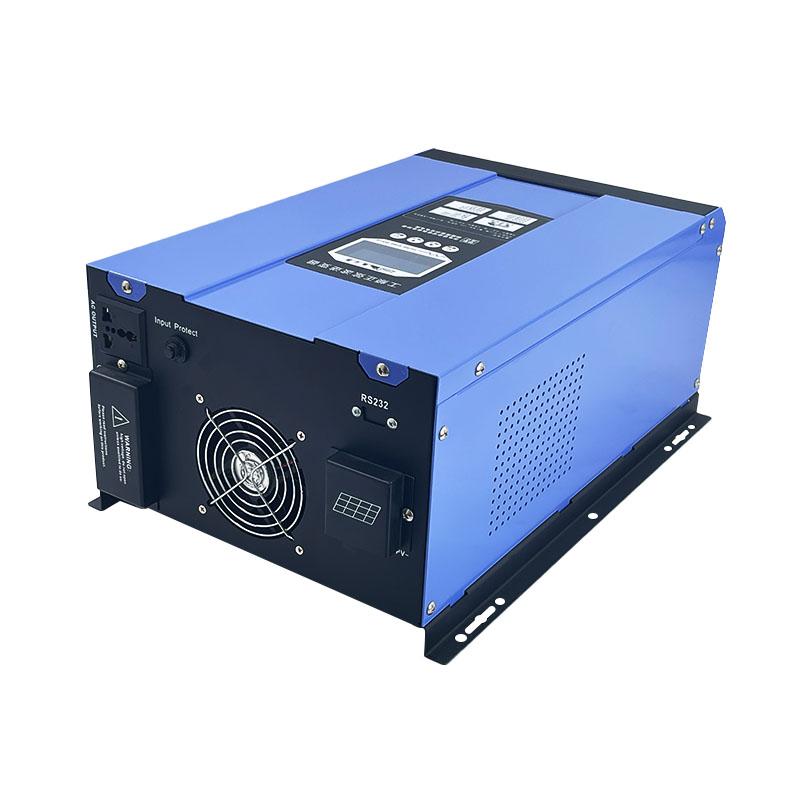

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
