48V 4000W-70A MPPT Solar Inverter

ZIHO® proudly manufactures 48V 4000W-70A MPPT Solar Inverter in China, featuring a built-in 70A-MPPT solar controller. Widely employed in home solar energy storage systems, marine and RV power setups, our inverters offer reliable performance in diverse applications. Trust in the Fujiyuan ZIHO brand for advanced, high-quality power supplies. We eagerly anticipate the opportunity to establish long-term partnerships in China, providing exceptional solutions tailored to your needs.

Model:FSY-Smart40204-70A

Send Inquiry

Product Description

48V 4000W-70A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheat and so on. Supports up to 1820 watts of solar panel access voltage recommended control between 39V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker and so on.

Machine Model	FSY-Smart40204-70A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	4000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-30A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	70A
loadability
Resistive loads	Below 4000W
Inductive loads	Below 1500W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	29

48V 4000W-70A MPPT Solar Inverter Product Characteristics and Applications

24V 4000W-70A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 4000W resistance load, 1500W motor, etc.

Product Details for 48V 4000W-70A MPPT Solar Inverter

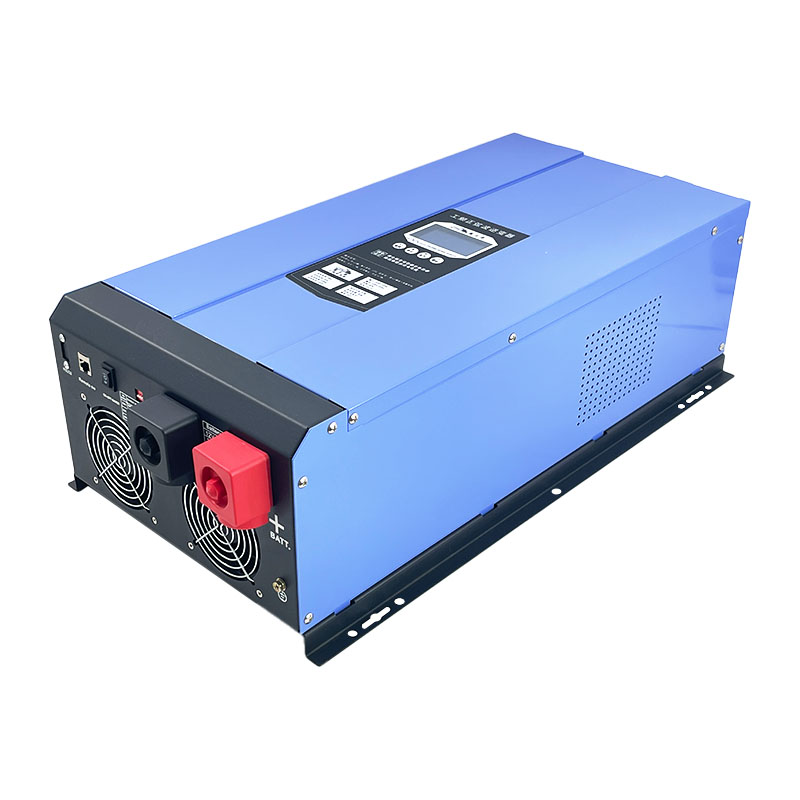

Front

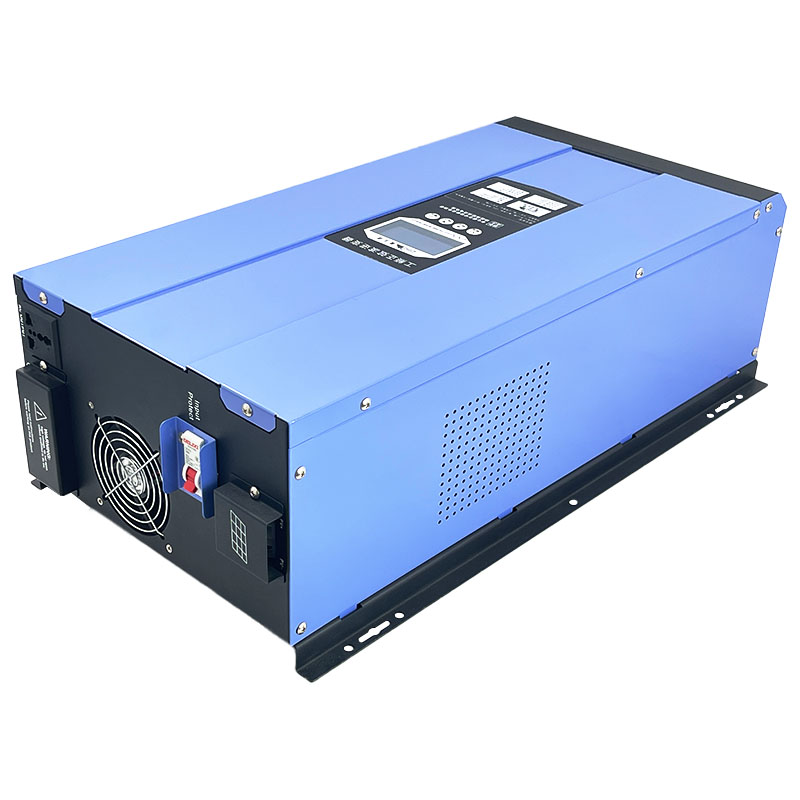

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
